Overview

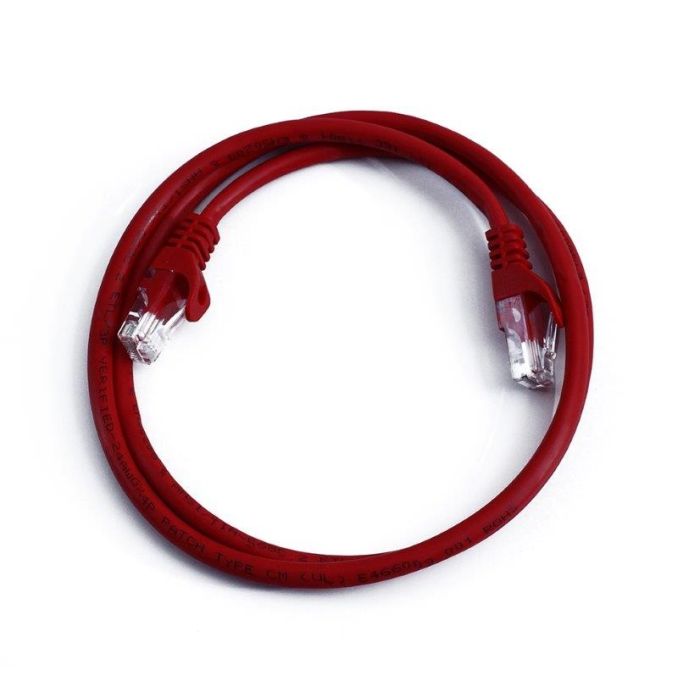

The Copper Cat 5e Patch Cable is a high-performance network connectivity solution designed to support reliable data transmission in professional environments. Engineered with a 4-pair stranded unshielded construction, this cable provides the flexibility and durability required for patch applications in data centers, server rooms, and office local area networks.
Equipped with snagless boots, the cable protects the RJ45 connector tabs during installation and removal in high-density environments. This patch cord is Non-Plenum (CMR) rated, ensuring suitability for general-purpose vertical and horizontal networking installations that require fire-resistance compliance.
Key Features
-
4-Pair Stranded Unshielded Design
Features a stranded conductor construction for maximum flexibility and ease of routing in patch panels and equipment racks. -
RJ45 Connectivity
Pre-terminated with high-quality 8-position RJ45 plugs for immediate, plug-and-play network deployment. -
Snagless Boot Integration
Protects the connector latch from breakage during moves, adds, and changes, extending the cable service life. -
Universal Wiring Compatibility
Supports both T568A and T568B wiring configurations, allowing for seamless integration into existing network infrastructures. -
Cat 5e Performance Standards
Designed to meet or exceed TIA/EIA Cat 5e performance requirements for reliable 10/100/1000 Mbps networking. -
CMR (Riser) Rating
Non-Plenum jacket construction suitable for installation in general-purpose building spaces that meet Riser safety codes.
Applications
- Local Area Network (LAN) connections
- Server-to-switch data links
- High-density patch panel routing
- Workstation and VoIP phone connections
- Network equipment rack interconnects
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Cat 5e Unshielded Patch Cord |
| Length | 15 ft |
| Color | Red |
| Conductor Gauge | 24 AWG |
| Pair Count | 4-pair stranded |
| Connector Type | 8-position RJ45 |
| Wiring Standard | Universal (T568A/T568B) |
| Fire Rating | CMR (Non-Plenum) |
Frequently Asked Questions
What does the CMR rating indicate?
The CMR rating denotes that the cable is designed to meet fire safety standards for use in vertical risers and general-purpose building areas.
Is this cable compatible with Gigabit networks?
Yes, it is designed to meet or exceed Cat 5e performance standards, which supports data speeds up to 1000 Mbps.
What is the purpose of the snagless boot?
The boot covers the release tab on the RJ45 connector, preventing it from catching on other cables or structures and breaking during installation.
Does this cable support both wiring schemes?
Yes, the cable is wired for universal compatibility with both T568A and T568B wiring standards.
Are these cables shielded?
No, these are unshielded (UTP) cables, which are standard for most indoor office and data center networking environments.
