Overview

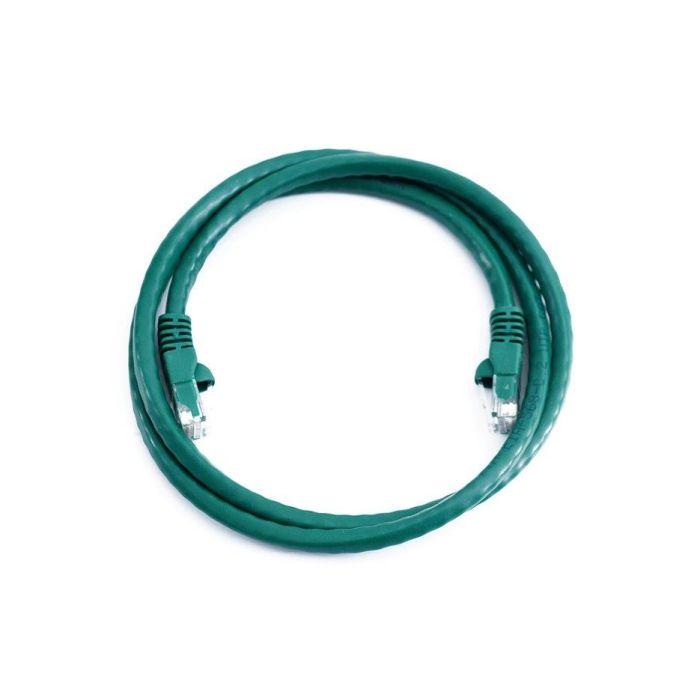

The Copper Cat 5e Patch Cable is a high-quality, pre-terminated networking solution designed for reliable data transmission in professional environments. This 25-foot cable features a 4-pair stranded, unshielded 24 AWG conductor construction, ensuring flexibility and consistent performance for standard Ethernet applications.
Engineered for versatility, this patch cord includes integrated snagless boots to protect the RJ45 connectors during installation and frequent handling. It is rated for Non-Plenum (CMR) use, making it suitable for general-purpose vertical and horizontal networking applications within standard commercial building environments.
Key Features
-
Standardized Wiring
Features universal T568A/T568B wiring for broad compatibility with existing network infrastructure. -
Snagless Connector Design
Integrated boots prevent the plastic latch from breaking during cable management, ensuring a secure connection. -
High-Performance Construction
Built with 4-pair stranded 24 AWG conductors to meet or exceed established Cat 5e performance standards. -
Pre-Terminated
Equipped with factory-installed 8-position RJ45 plugs to facilitate quick, plug-and-play installation. -
CMR Rated
Non-plenum (CMR) jacket suitable for general-purpose networking installations. -
Reliable Connectivity
Ensures stable data transfer for high-speed network connections.
Applications
- Local Area Networks (LAN)
- Workstation connectivity
- Patch panel to switch interconnections
- VoIP phone systems
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Cat 5e Patch Cord |
| Connector A | RJ45 |
| Connector B | RJ45 |
| Cable Length | 25 ft |
| Conductor Gauge | 24 AWG |
| Pair Count | 4-pair |
| Shielding | Unshielded |
| Jacket Rating | Non-Plenum (CMR) |
| Wiring Scheme | Universal (T568A/T568B) |
| Color | Green |
Frequently Asked Questions
Is this cable plenum rated?
No, this cable is CMR (Riser) rated, which is designed for general vertical and horizontal installations, not plenum air spaces.
Can I use this for T568A and T568B wiring?
Yes, the cable is wired to support universal T568A and T568B standards.
Are the connectors pre-installed?
Yes, this is a pre-terminated patch cord with RJ45 plugs on both ends.
What does the snagless boot do?
The boot protects the release tab on the RJ45 connector, preventing it from snapping off during cable routing and installation.
Is the wire solid or stranded?
This cable uses stranded conductors, which provides greater flexibility than solid core cables.
