Overview

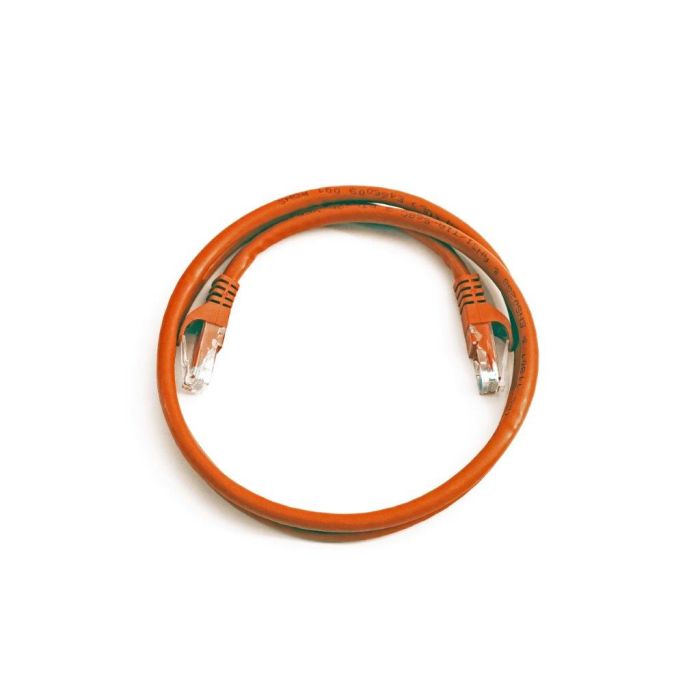

The Copper Cat 6 Patch Cable is a high-performance network connectivity solution designed for reliable data transmission in Ethernet environments. This cable is engineered to meet or exceed Category 6 performance standards, ensuring compatibility with demanding network applications and high-speed data requirements.
Constructed with 4-pair stranded, 24 AWG conductors, this patch cable features a Non-Plenum (CMR) rated jacket, making it suitable for standard building installations where plenum rating is not required. The cable is pre-terminated with 8-position RJ-45 plugs and includes snagless boots to prevent connector damage during installation in high-density rack environments.
Key Features
-
Category 6 Performance
Meets or exceeds TIA/EIA performance standards for reliable, high-speed data network operations. -
Snagless Boots
Protects the RJ-45 connector latch from breaking during routing, extending the lifespan of the patch cord. -
24 AWG Conductors
Uses stranded copper wire to provide the necessary flexibility for patch panel and switch management. -
Universal Wiring
Supports both T568A and T568B wiring configurations for versatile deployment in various network infrastructures. -
8-Position RJ-45 Connectors
Standardized interface ensures seamless compatibility with almost all networking hardware, switches, and patch panels. -
CMR Rated Jacket
Non-plenum jacket meets safety standards for standard commercial or residential interior installations.
Applications
- Local Area Networks (LAN)
- Data Center Rack Management
- Ethernet Switch-to-Server Connections
- VoIP and IP Camera Installations
- Workstation Desktop Connectivity
Technical Specifications
| Specification | Value |
|---|---|
| Cable Category | Cat 6 |
| Cable Length | 10ft |
| Conductor Gauge | 24 AWG |
| Conductor Type | 4-Pair Stranded |
| Shielding | Unshielded |
| Connector A | 8-Position RJ-45 |
| Connector B | 8-Position RJ-45 |
| Jacket Rating | CMR (Non-Plenum) |
| Wiring Standard | Universal (T568A/T568B) |
| Color | Orange |
Frequently Asked Questions
What is the difference between CMR and Plenum rated cables?
CMR (Riser) rated cable is designed for use in vertical shafts or general building areas. Plenum (CMP) cable is required for use in air handling spaces (such as drop ceilings) and has higher flame-retardant requirements.
Does this cable support both T568A and T568B wiring?
Yes, the cable is wired to support universal industry standards, allowing it to function in both T568A and T568B environments.
Are these cables compatible with Cat 5e equipment?
Yes, Cat 6 is backward compatible with Cat 5e hardware and systems.
What does the snagless boot do?
The boot covers the release tab on the RJ-45 connector, preventing it from catching on other cables or rack hardware, which prevents the tab from snapping off.
Is this a shielded or unshielded cable?
This is an unshielded (UTP) patch cable.
