Overview

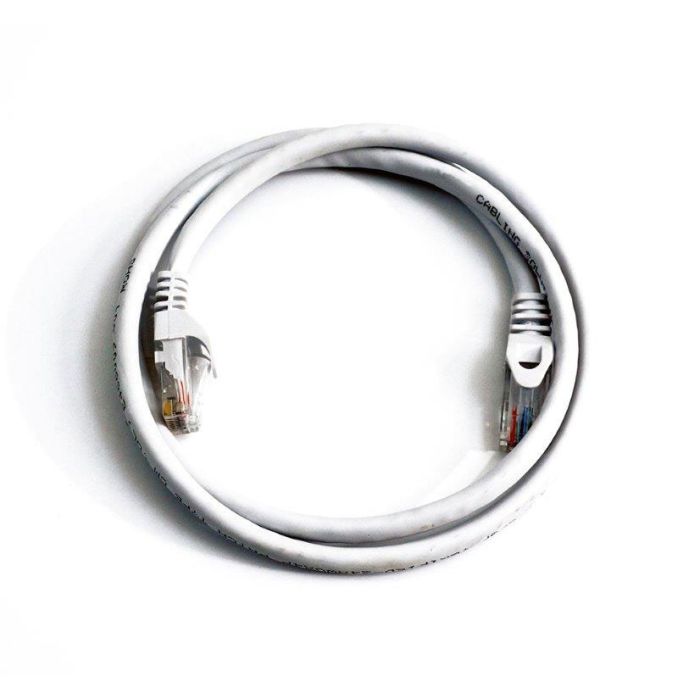

This Category 6 patch cable is designed for high-performance network connectivity in data center and office environments. Pre-terminated with 8-position RJ45 plugs, this cable features integrated snagless boots to provide strain relief and protect the connector latch during installation.
Constructed with 4-pair stranded unshielded 24 AWG conductors, this cable is Non-Plenum (CMR) rated for general building use. It provides reliable data transmission and meets or exceeds standard Cat 6 performance requirements, ensuring compatibility with modern Ethernet networking standards.
Key Features
-
RJ45 Termination
Features pre-terminated 8-position RJ45 plugs for immediate deployment and consistent signal integrity. -
Snagless Boots
Integrated protective boots prevent the connector latch from breaking during cable management, extending service life. -
Category 6 Performance
Meets or exceeds industry Cat 6 standards to support high-speed data applications. -
Stranded 24 AWG Conductor
Uses 4-pair stranded copper for enhanced flexibility and durability in patch panel applications. -
CMR Rated
Non-Plenum (CMR) jacket construction complies with building codes for general-purpose networking installations. -
Universal Wiring
Supports both T568A and T568B universal wiring configurations for versatile network implementation.
Applications
- Local Area Networks (LAN)
- Data center patch panel connections
- Workstation-to-wall-jack links
- Voice and data infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Category 6 Patch Cable |
| Length | 5ft |
| Connector | RJ45 (8-Position) |
| Conductor Gauge | 24 AWG |
| Construction | 4-pair stranded unshielded |
| Color | White |
| Rating | Non-Plenum (CMR) |
| Wiring Standard | Universal (T568A/T568B) |
Frequently Asked Questions
What does the CMR rating mean?
CMR stands for Communications Multipurpose Cable, Riser. It is a flame-retardant rating suitable for installation in vertical riser shafts between floors.
Are these cables shielded?
No, these are unshielded (UTP) cables intended for standard environments without high electromagnetic interference.
Can these cables be used for both T568A and T568B wiring?
Yes, they are manufactured with universal wiring to be compatible with both T568A and T568B standards.
Do the cables include boots?
Yes, they come with pre-installed snagless boots for connector protection.
What is the conductor size?
These cables utilize 24 AWG stranded copper conductors.
