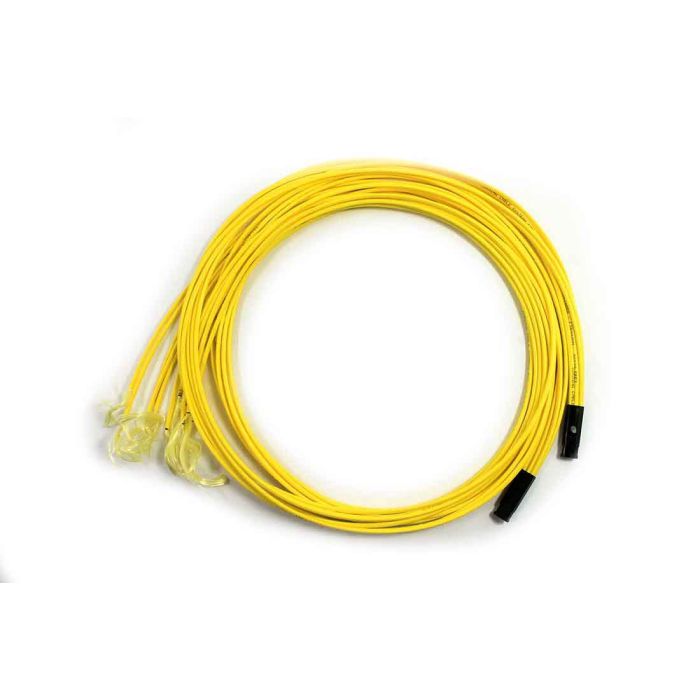

Corning 12 Fiber Spider Fan-Out Kit 900um Yellow

Overview

The Corning 12 Fiber Spider Fan-Out Kit is designed for the factory or field termination of distribution and loose tube cables. It serves to transition multi-fiber cables into individual 900um buffered fibers, facilitating easier connection to standard fiber optic components.

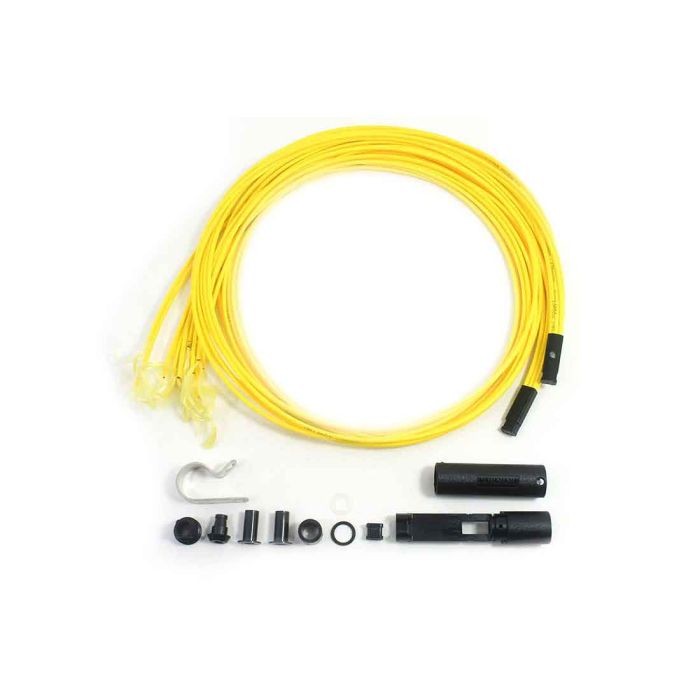

This kit utilizes a robust construction that includes a Teflon inner tube, a dielectric strength member, and an outer protective PVC jacket to provide three layers of mechanical protection. A multi-piece tubular housing shields the fan-out insert, ensuring integrity in various installation environments. The system is re-enterable and simplifies the termination process by eliminating the need for specialized tools or heat shrink materials.

Key Features

• Three-Layer Protection
  Features a Teflon inner tube, dielectric strength member, and PVC outer jacket for enhanced cable durability.
• Re-enterable Design
  Allows for easier maintenance or reconfiguration of terminations after the initial installation.
• Tool-Less Installation
  Eliminates the requirement for heat shrink or special tools, reducing assembly time in the field.
• Multi-Piece Tubular Housing
  Shields the fan-out insert from external physical damage and stress.
• Universal Compatibility
  Designed for use with 4 to 24 fiber distribution or loose tube cables.
• Standard 900um Output
  Provides 900um buffer sizing suitable for standard connector termination.

Applications

• Distribution cable breakout
• Loose tube cable termination
• Field termination projects
• Central office and data center fiber management

Technical Specifications

Frequently Asked Questions

Does this kit require heat shrink for installation?
No, the design is re-enterable and does not require heat shrink or special tools for assembly.

What cable types are compatible with this kit?
It is designed for use with distribution or loose tube cables ranging from 4 to 24 fibers.

What is the purpose of the fan-out tubing?
It protects the fiber and transitions multi-fiber cables into individual 900um fibers for termination.

Does this kit provide physical protection?
Yes, it includes a multi-piece tubular housing that shields the fan-out insert from physical damage.

Is this kit intended for field use?
Yes, it is designed for both factory and field termination environments.
