Overview

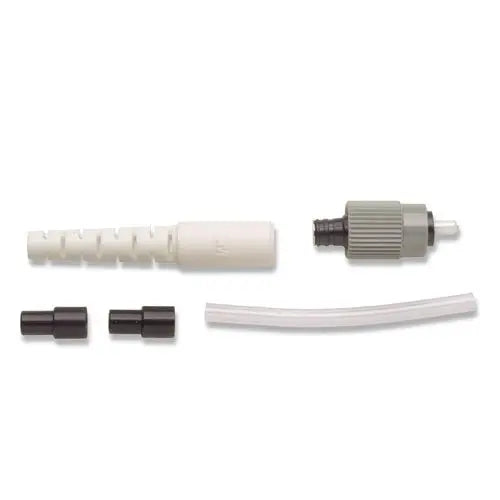

The Corning 8200-W Single Mode FC Hot Melt Connector is a specialized fiber optic interconnect designed for reliable field terminations. Engineered for 125µm single-mode fiber, this connector utilizes an internal adhesive that is activated via heat, streamlining the termination process for network technicians and contractors.
Featuring a high-precision zirconia ceramic ferrule, this connector is built to ensure consistent optical alignment and performance. It is suited for demanding data center, telecommunications, and enterprise network environments where quality and ease of installation are critical for maintaining low-loss fiber pathways.
Key Features
-
Zirconia Ceramic Ferrule
Provides precise alignment and long-term durability for consistent signal transmission. -
Single-Mode Optimization
Designed specifically for 125µm single-mode fiber applications. -
Heat-Activated Adhesive
Reduces installation time by allowing for quick, efficient termination in the field. -
FC Connector Interface
Delivers a secure, screw-on connection suitable for vibration-prone environments. -
Included 3.0mm White Boot
Ensures proper strain relief and cable management for the terminated fiber. -
Low Insertion Loss
Typical insertion loss of less than 0.2 dB to maintain network power budgets.
Applications
- Telecommunications network infrastructure
- Data center cabling
- Local Area Network (LAN) installation
- Premise wiring and fiber distribution
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 8200-W |
| Part Number | 80611176126 |
| Connector Type | FC |
| Fiber Type | Single-Mode |
| Fiber Compatibility | 125µm |
| Ferrule Material | Zirconia Ceramic |
| Typical Insertion Loss | < 0.2 dB |
| Boot Color | White |
| Cable Diameter | 3.0 mm |
Frequently Asked Questions
What type of fiber is this connector compatible with?
It is specifically designed for 125µm single-mode fiber.
What is the typical insertion loss?
The connector features a typical insertion loss of less than 0.2 dB.
Is the hot melt adhesive included?
Yes, the connector comes pre-loaded with a heat-activated adhesive for termination.
What tool is required for installation?
A heat oven is required to activate the adhesive within the connector.
How many connectors are included?
The listed price is for 1 individual connector.
