Overview

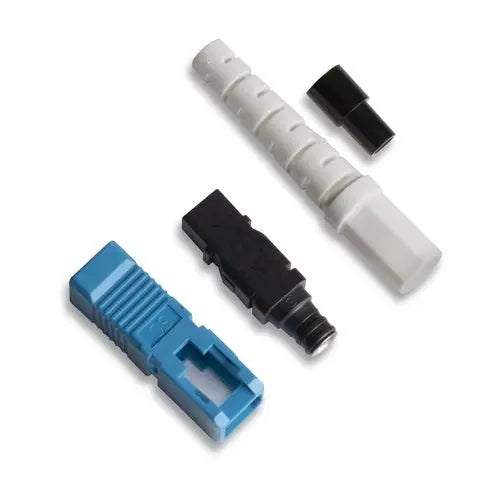

The Corning 8300-W1K-S is a single-mode SC hot melt connector engineered for high-efficiency fiber optic terminations. Designed for 125µm fiber and compatible with 250/900µm jacketed cables, this connector is optimized for rapid deployment in local area network (LAN) environments.
This connector utilizes a zirconia ceramic ferrule and is pre-loaded with an advanced, re-heatable adhesive, eliminating the need for manual epoxy mixing. The hot melt design allows for fiber repositioning during the termination process, significantly reducing installation time to approximately two minutes while ensuring a consistent, high-quality connection.
Key Features
-
Zirconia Ceramic Ferrule
Ensures precise fiber alignment and durability for consistent optical performance. -
Hot Melt Adhesive
Pre-loaded adhesive simplifies the process and eliminates the mess and prep time of epoxy mixing. -
Re-heatable Design
Allows for technician adjustments and fiber repositioning to prevent termination errors. -
2-Minute Termination
Drastically reduces labor time for rapid field installation. -
White Boot
Provides clear color-coding for identification and cable management. -
No Internal Splice
Maintains signal integrity through a continuous fiber path without internal connection points. -
TIA/EIA 568-C.3 Compliance
Meets established standards for both indoor and outdoor fiber optic applications.
Applications
- Local Area Networks (LAN)
- Fiber-to-the-Desk (FTTD)
- Indoor/Outdoor premise cabling
- Maintenance and repair of fiber infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 8300-W1K-S |
| Connector Type | SC |
| Fiber Mode | Single Mode |
| Ferrule Material | Zirconia Ceramic |
| Fiber Compatibility | 125µm |
| Cable Compatibility | 250/900µm |
| Boot Color | White |
| Termination Time | Approximately 2 minutes |
| Standards | TIA/EIA 568-C.3 |
Frequently Asked Questions
What type of fiber is this connector designed for?
This connector is designed for 125µm single-mode fiber.
Do I need to mix epoxy to install this?
No, the connector is pre-loaded with a re-heatable adhesive.
Can I reposition the fiber after insertion?
Yes, the internal hot melt adhesive allows for fiber repositioning during the termination process.
What is the typical termination time?
Termination takes approximately 2 minutes.
Does this connector use an internal splice?
No, this connector features a design that does not require an internal splice.
