Overview
The Corning 95-000-40 UniCam® Standard-Performance SC Connector is a precision-engineered, field-installable fiber optic connector designed for 62.5µm multimode (OM1) applications. It utilizes a ceramic ferrule to provide a stable, cost-effective, and rapid termination solution for data center and premise cabling environments.
Engineered for high efficiency, this no-epoxy, no-polish connector eliminates the need for curing ovens and messy adhesives, significantly reducing installation time in the field. The design ensures consistent optical performance that meets or exceeds stringent industry standards for insertion loss and reflectance, making it a dependable choice for network technicians and contractors requiring reliable connectivity.
Key Features
-
Ceramic Ferrule Design
Ensures high-precision alignment and stable optical performance over time. -
Fast Field Termination
Allows for installation in approximately 50 seconds, reducing labor costs. -
No-Epoxy, No-Polish Process
Simplifies the termination procedure by removing the need for consumables like epoxy or film. -
High-Performance Optical Specs
Guarantees a 0.3dB typical insertion loss, ensuring signal integrity. -
Wide Operating Temperature Range
Rated for -40°F to 167°F to accommodate various indoor and outdoor environmental conditions. -
TIA/EIA Compliant
Meets TIA/EIA 604-10A and IEC61754-20 FOCIS standards for universal compatibility.
Applications
- Data Center Networks
- Enterprise LAN/WAN Connectivity
- Fiber Optic Premise Cabling
- Field Repair and Maintenance

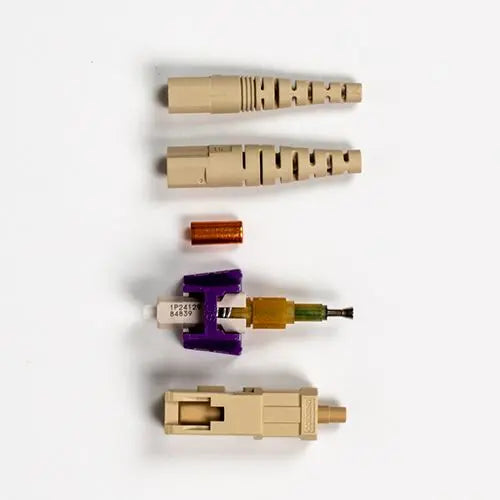

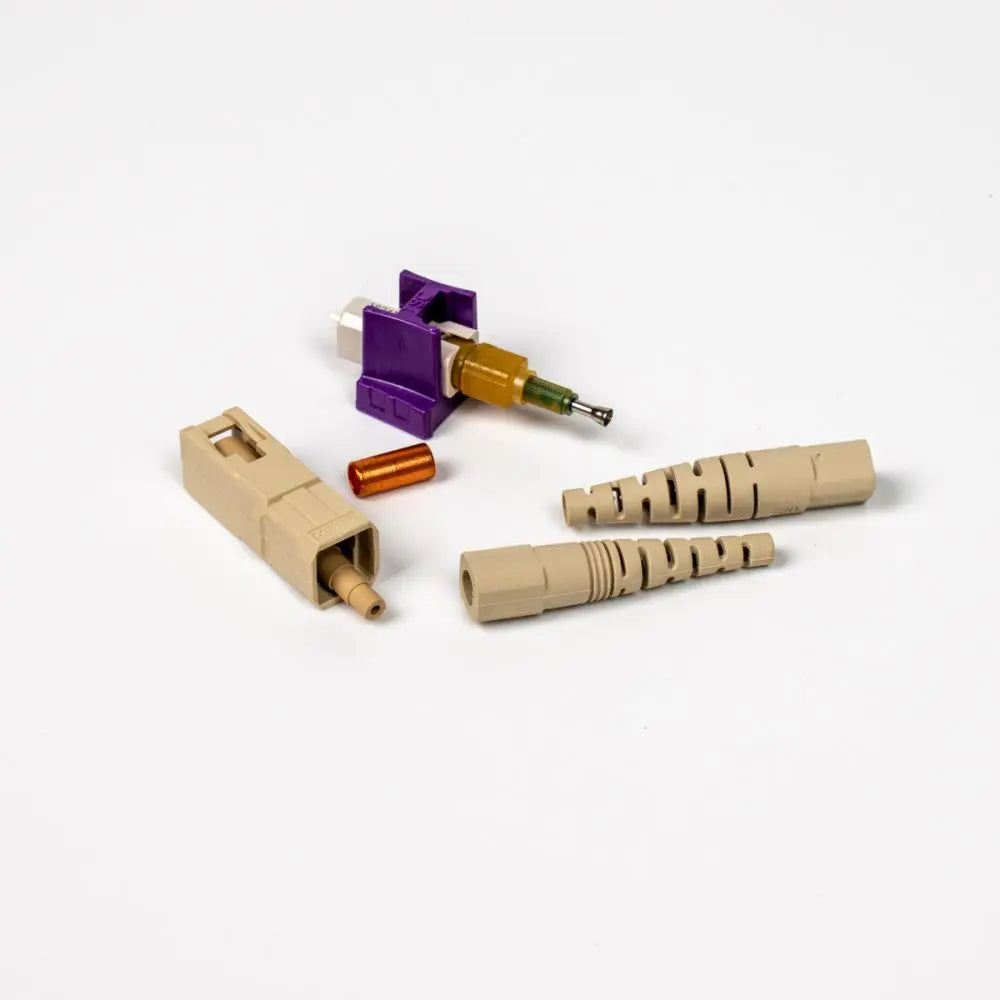

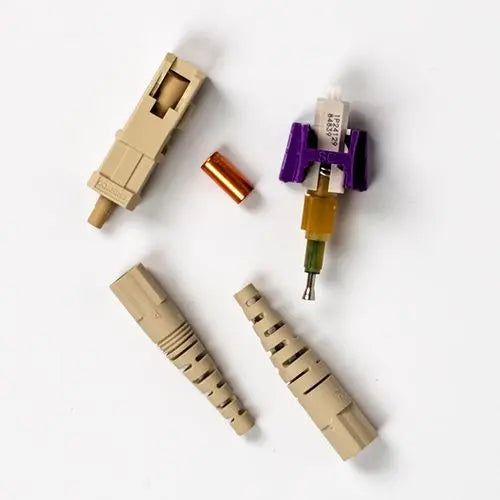

Package Contents
- SC Connector
- Shroud
- Crimp Band
- 900µm Boot
- 3.0 mm Boot
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 95-000-40 |
| Fiber Type | 62.5µm Multimode (OM1) |
| Connector Type | SC |
| Typical Insertion Loss | 0.3 dB |
| Maximum Insertion Loss | 0.75 dB |
| Reflectance | ≤ -26 dB |
| Operating Temperature | -40°F to 167°F |
| Compliance | TIA/EIA 604-10A, IEC61754-20 |
Frequently Asked Questions
What is the typical installation time?
The connector can be installed in approximately 50 seconds using the proper tool kit.
Are tools included?
No, the UniCam Connector High-Performance Installation Tool Kit (TKT-UNICAM-PFC) is sold separately.
Does this connector require epoxy?
No, this is a no-epoxy, no-polish field-termination solution.
What kind of fiber is this compatible with?
It is designed for 62.5µm multimode (OM1) fiber.
What is the operating temperature rating?
The operating temperature range is -40°F to 167°F, exceeding EIA/TIA 568-B.3 standards.
