Overview
The Corning 95-000-41 UniCam® High-Performance Connector is a field-installable SC connector featuring a precision ceramic ferrule. Designed for rapid and efficient termination of 62.5µm multimode (OM1) fiber, this connector eliminates the need for field polishing or epoxy, significantly reducing installation time and complexity.
This SC connector is engineered for high-performance applications, offering consistent optical results in standard operating environments. It is fully compliant with industry standards for fiber optic connectivity and is optimized for use with the UniCam high-performance installation tool kit.
Key Features
-
Ceramic Ferrule
Ensures precise fiber alignment for high-quality connection performance. -
Field-Installable Design
Allows for rapid deployment in the field without the need for messy adhesives or polishing. -
No-Epoxy/No-Polish
Reduces installation steps and labor time while improving process cleanliness. -
62.5µm Multimode Compatibility
Optimized for use with OM1 multimode fiber networks. -
Low Insertion Loss
Guarantees a 0.1dB typical and 0.5dB maximum insertion loss for effective signal transmission. -
Standardized Reflectance
Maintains a reflectance rating of ≤ -26dB for network integrity. -
FOCIS Compliant
Meets international standards for connector interface geometry and performance.
Applications
- Data center cabling
- Enterprise local area networks (LAN)
- Fiber optic backbone installations
- Premises distribution systems

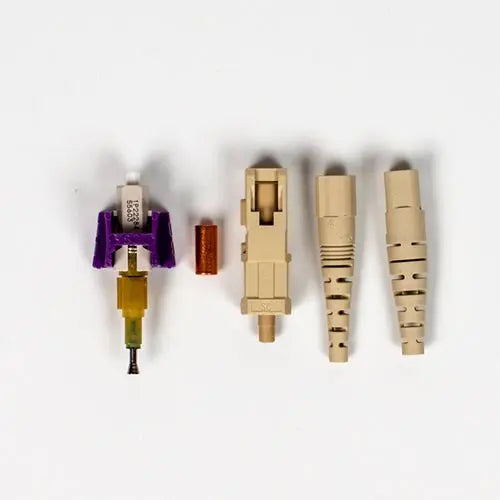

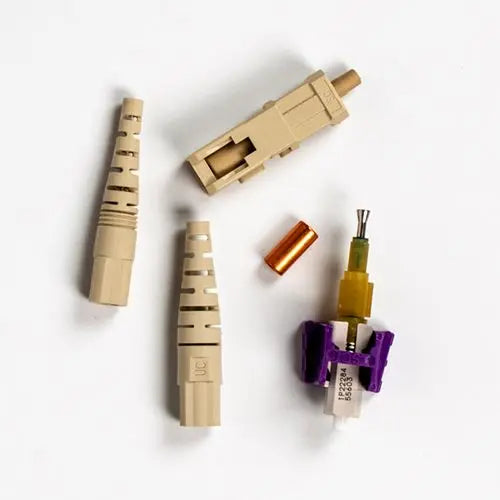

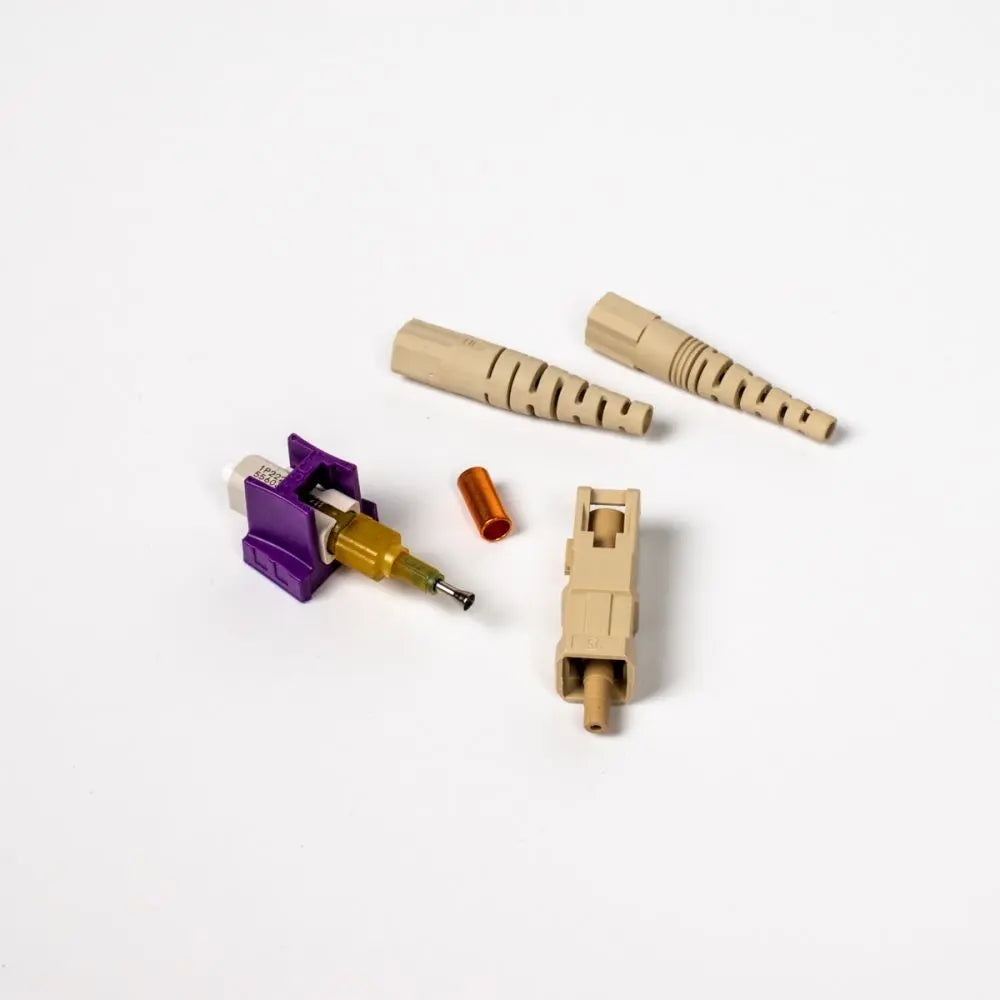

Package Contents
- SC Connector
- Shroud
- Crimp Band
- 900µm Boot
- 3.0mm Boot
Technical Specifications
| Specification | Value |
|---|---|
| Model | 95-000-41 |
| Connector Type | SC |
| Fiber Type | Multimode (OM1) |
| Fiber Size | 62.5µm |
| Typical Insertion Loss | 0.1 dB |
| Maximum Insertion Loss | 0.5 dB |
| Reflectance | ≤ -26 dB |
| Operating Temperature | -40°F to 167°F |
| Housing Color | Beige |
| Boot Color | Beige |
Frequently Asked Questions
What tool kit is required for this connector?
It is designed for use with the UniCam High-Performance Installation Tool Kit, specifically model TKT-UNICAM-PFC.
Is this connector suitable for single-mode fiber?
No, this model is specifically designed for 62.5µm multimode (OM1) fiber.
What is the typical installation time?
The connector can typically be installed in approximately 50 seconds when using the recommended tooling.
Does this connector require epoxy?
No, this is a no-epoxy, no-polish connector designed for fast field termination.
What standards does this connector meet?
It is FOCIS compliant with TIA/EIA 604-10A and IEC61754-20 standards.
