Overview

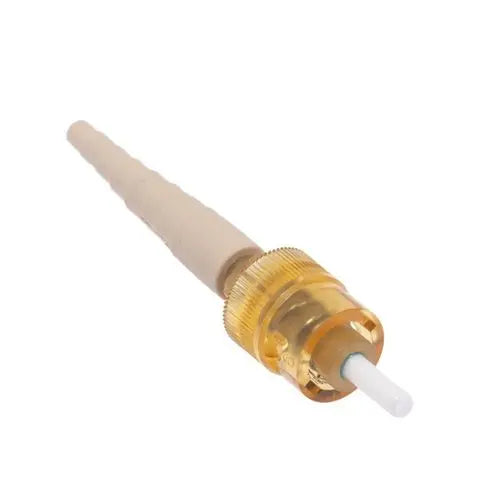

The Corning 95-000-51 UniCam High-Performance Connector is a field-installable ST connector designed for 62.5µm multimode fiber networks. It features a high-precision ceramic ferrule, engineered to deliver fast, reliable termination without the need for epoxy or polishing. The connector is designed for rapid deployment, allowing for installation in approximately 50 seconds when paired with the compatible UniCam high-performance installation tool kit.
Suitable for a wide range of indoor and outdoor environments, this connector operates effectively across a broad temperature range of -40°F to 167°F, exceeding standard performance requirements. Its design ensures low insertion loss and stable reflectance, making it a robust choice for data centers, local area networks, and enterprise fiber cabling infrastructure.
Key Features
-

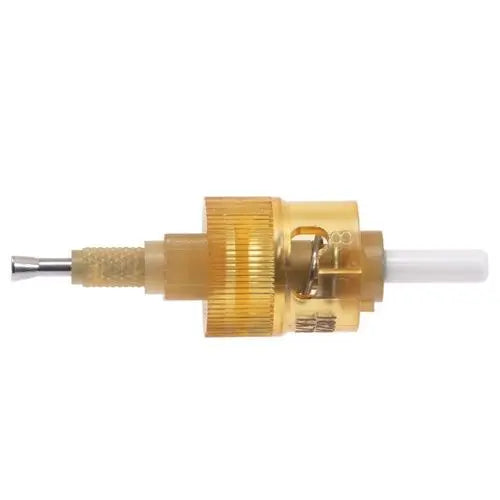

Ceramic Ferrule
Ensures high-precision alignment for consistent optical performance in multimode applications. -
Fast Field Termination
Allows for installation in approximately 50 seconds to significantly reduce labor time. -
No-Epoxy, No-Polish Design
Simplifies the termination process and eliminates the need for curing ovens or manual polishing equipment. -
Performance Optimized
Features a 0.1dB typical insertion loss and maximum 0.5dB loss, with reflectance of ≤ -26dB. -
Wide Operating Temperature
Rated for performance between -40°F and 167°F, ensuring utility in diverse climates. -
FOCIS Compliant
Meets TIA/EIA 604-2 and IEC61754-2 industry standards for compatibility and reliability.
Applications
- Data center fiber infrastructure
- Enterprise LAN/WAN backbones
- Field termination and restoration of fiber optic links
- Premises cabling environments

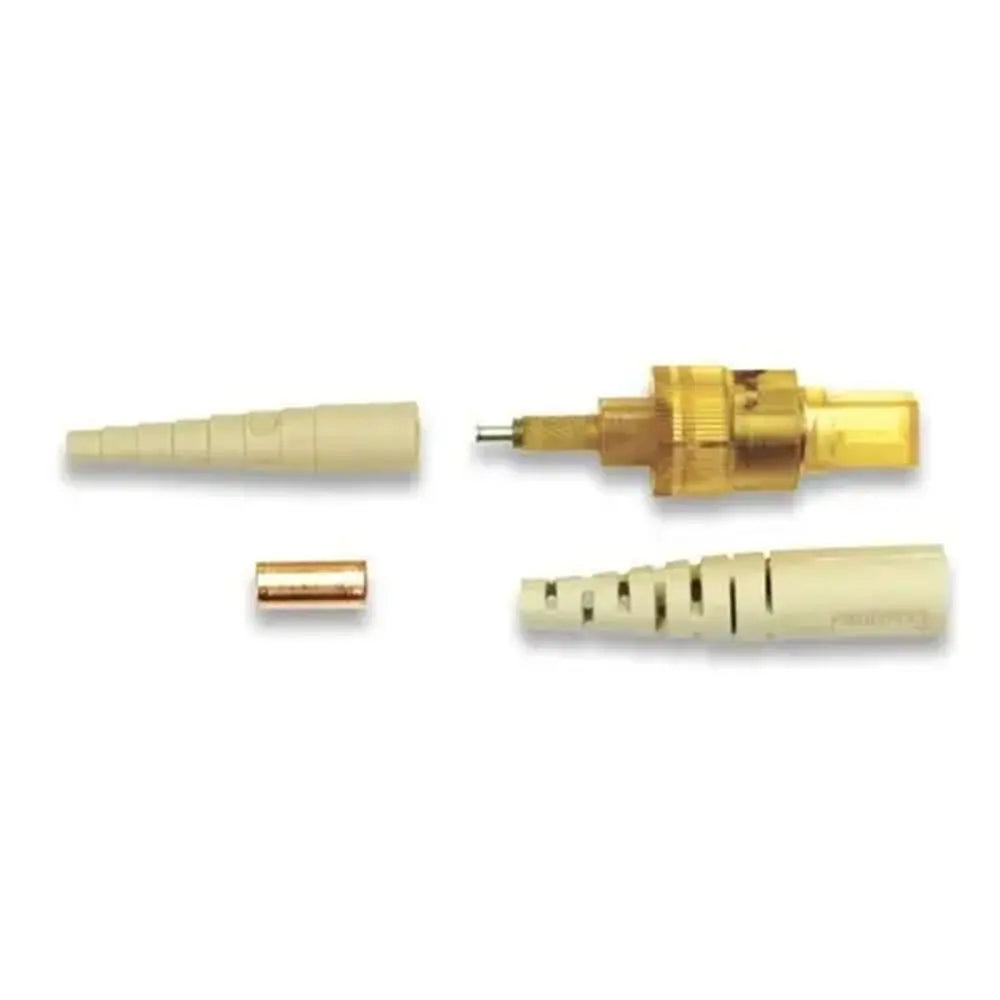

Package Contents
- ST Connector
- Crimp band
- 900µm boot
- 3.0 mm boot
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 95-000-51 |
| Connector Type | ST |
| Fiber Type | Multimode (OM1) |
| Core Size | 62.5µm |
| Insertion Loss | 0.1dB Typical / 0.5dB Max |
| Reflectance | ≤ -26dB |
| Operating Temperature | -40°F to 167°F |
| Standards | TIA/EIA 604-2, IEC61754-2, EIA/TIA 568-B.3 |
Frequently Asked Questions
What tool is required for installation?
The connector requires the UniCam Connector High-Performance Installation Tool Kit (TKT-UNICAM-PFC), which is sold separately.
Is this connector polishable?
No, this is a no-polish, no-epoxy field connector.
What fiber sizes are supported?
This specific model is designed for 62.5µm multimode fiber.
Does this include boots for different cable sizes?
Yes, the package includes both a 900µm boot and a 3.0 mm boot.
What is the typical insertion loss?
The connector provides a typical insertion loss of 0.1dB.
