Overview
The Corning 95-000-99 UniCam® High-Performance Connector is a precision-engineered 62.5µm multimode LC connector designed for rapid, reliable field-termination. By utilizing a high-performance ceramic ferrule, this connector minimizes optical signal loss in demanding network environments.
This solution eliminates the need for field epoxy application or time-consuming polishing, significantly reducing installation time. It is specifically designed for use in enterprise networks, data centers, and telecommunications infrastructure where speed and performance are critical. The connector is constructed to meet rigorous industry standards for long-term stability and environmental resilience.
Key Features
-
Fast Field Termination
Designed for installation in approximately 50 seconds, reducing total project labor time. -
Ceramic Ferrule
Ensures high-precision alignment and stability for consistent optical performance. -
Low Insertion Loss
Provides 0.1dB typical and 0.5dB maximum insertion loss for optimized signal integrity. -
Reflectance Performance
Maintains ≤ -26dB reflectance to minimize back-reflection in multimode systems. -
No-Epoxy/No-Polish Design
Simplifies the field-termination process, reducing the risk of errors and material waste. -
FOCIS Compliant
Meets TIA/EIA 604-10A and IEC61754-20 standards for interoperability. -
Wide Operating Temperature
Operates reliably from -40°F to 167°F, exceeding standard EIA/TIA requirements.
Applications
- Enterprise Networks
- Data Center Interconnects
- Telecommunications Infrastructure
- Local Area Networks (LAN)
- Premise Distribution Systems

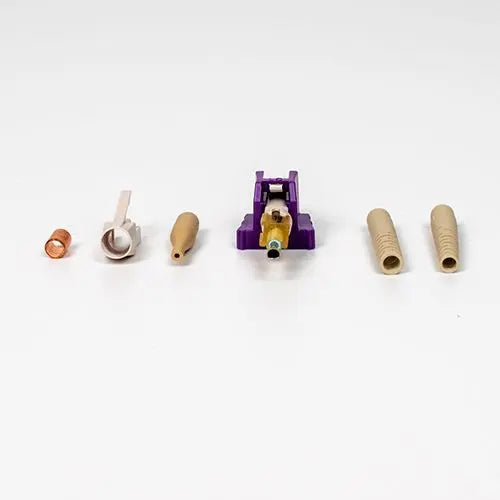

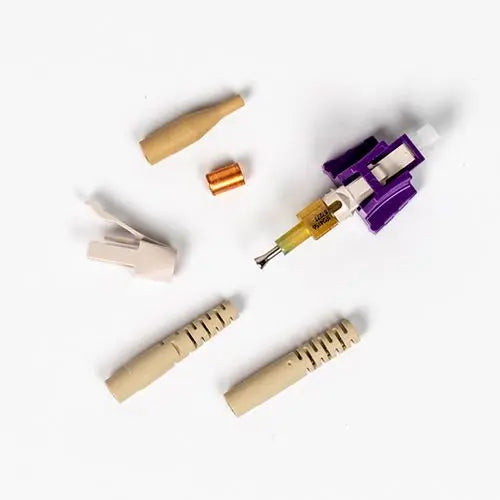

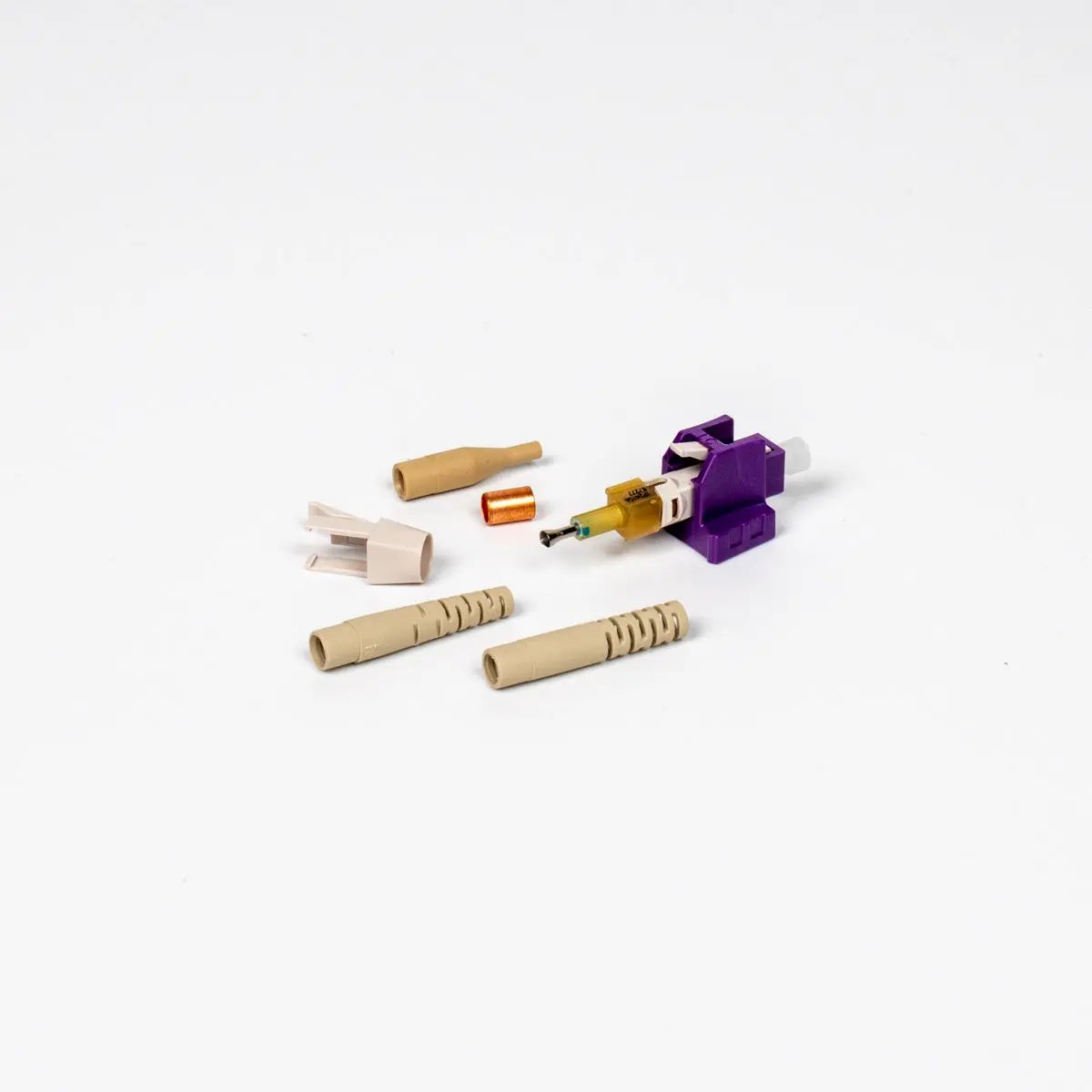

Package Contents
- LC Connector
- Trigger
- Crimp Band
- 900µm Boot
- 3.0mm Boot
- 2.0mm Boot
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Part Number | 95-000-99 |
| Connector Type | LC |
| Fiber Type | Multimode (OM1) |
| Fiber Size | 62.5µm |
| Insertion Loss | 0.1dB (Typical) / 0.5dB (Max) |
| Reflectance | ≤ -26dB |
| Operating Temperature | -40°F to 167°F |
| Standards | TIA/EIA 604-10A, IEC61754-20, EIA/TIA 568-B.3 |
Frequently Asked Questions
What installation tool is required?
The connector is intended for use with the UniCam Connector High-Performance Installation Tool Kit (TKT-UNICAM-PFC), which is sold separately.
Does this connector require epoxy?
No, this is a no-epoxy, no-polish field-installable connector.
What is the fiber type compatibility?
This connector is specifically designed for 62.5µm multimode fiber (OM1).
Can I reuse the boots?
The package includes multiple boot sizes (900µm, 2.0mm, and 3.0mm) to accommodate different cable diameters during initial installation.
Does it meet industry standards?
Yes, it is FOCIS compliant and exceeds EIA/TIA 568-B.3 performance standards.
