Overview
The Corning 95-050-41 UniCam® High-Performance Connector is a field-installable 50µm multimode SC connector designed for rapid fiber termination. Featuring a high-quality ceramic ferrule, this connector eliminates the need for epoxy or polishing, significantly reducing installation time and complexity in the field.
Engineered for high performance and durability, this connector is designed for use in various networking environments. Its robust construction ensures stable operation across a wide temperature range, making it suitable for demanding data center and premise cabling applications. The connector is fully compliant with industry standards, ensuring seamless compatibility and consistent optical performance.
Key Features
-
Ceramic Ferrule
Provides precise fiber alignment for high-performance optical connections. -
No-Epoxy/No-Polish Design
Enables fast, efficient field termination in approximately 50 seconds. -
High-Performance Multimode
Optimized for 50µm multimode (OM2) fiber systems. -
Low Insertion Loss
Guarantees a 0.1dB typical and 0.5dB maximum insertion loss for signal integrity. -
Reflectance Performance
Achieves ≤ -26dB reflectance to minimize back-reflection issues. -
Broad Operating Temperature
Rated for operation from -40°F to 167°F, exceeding standard requirements. -
Standards Compliant
FOCIS compliant with TIA/EIA 604-10A and IEC 61754-20 specifications.
Applications
- Data Center Interconnects
- Premise Cabling
- Local Area Networks (LAN)
- Field Repair and Maintenance
- Fiber Optic Equipment Patching

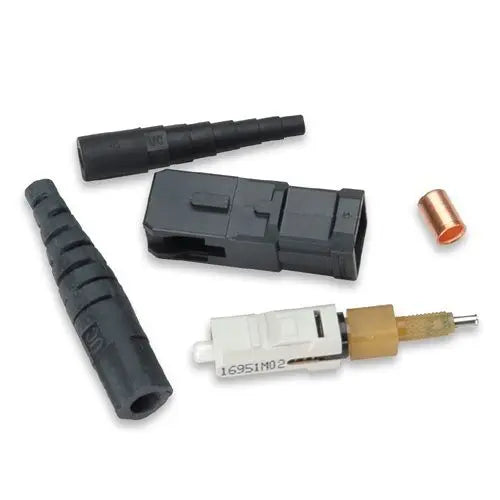

Package Contents
- SC Connector
- Shroud
- Crimp Band
- 900µm Boot
- 3.0mm Boot
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Part Number | 95-050-41 |
| Connector Type | SC |
| Fiber Type | 50µm Multimode (OM2) |
| Insertion Loss | 0.1dB Typical / 0.5dB Maximum |
| Reflectance | ≤ -26dB |
| Operating Temperature | -40°F to 167°F |
| Housing/Boot Color | Black |
| Standards | TIA/EIA 604-10A, IEC 61754-20, EIA/TIA 568-B.3 |
Frequently Asked Questions
What tool is required for installation?
The UniCam Connector High-Performance Installation Tool Kit (TKT-UNICAM-PFC) is required for installation.
Is this connector polish-free?
Yes, this is a no-epoxy, no-polish connector, allowing for rapid field installation.
What size fiber is this designed for?
This connector is specifically designed for 50µm multimode fiber.
Does the package include different boots?
Yes, the package includes both 900µm and 3.0mm boots to accommodate different cable types.
What is the maximum insertion loss for this connector?
The maximum insertion loss for this connector is 0.5dB.
