Overview

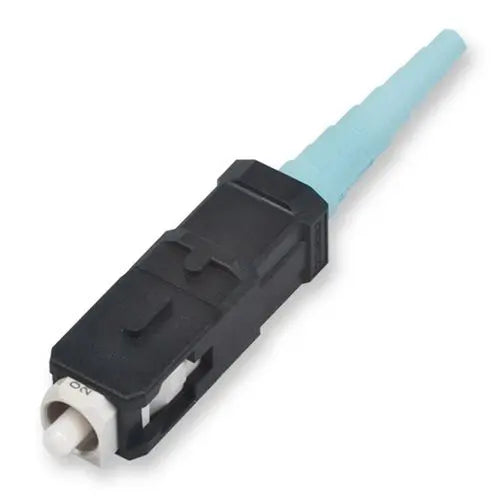

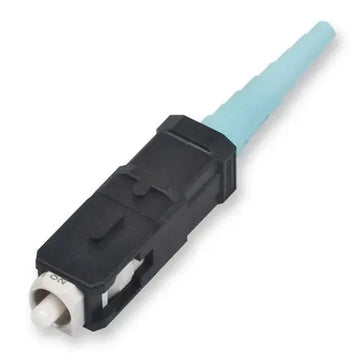

The Corning 95-050-41-X UniCam® SC Connector is a high-performance, field-installable multimode connector designed for rapid, cost-effective fiber optic termination. Featuring a ceramic ferrule, this 50µm connector is optimized for OM3 and OM4 multimode fiber environments, providing a dependable interface for enterprise networks and data centers.
Engineered for efficiency, this connector eliminates the need for field polishing or adhesives, allowing for installation in approximately 50 seconds when used with the appropriate termination tool kit. Its robust design is suited for various operating conditions, meeting and exceeding established industry standards for optical performance.
Key Features
-
Field Termination
Designed for rapid, tool-based termination, significantly reducing installation time compared to traditional methods. -
No-Epoxy/No-Polish
Eliminates the complexity and mess of adhesives and polishing, ensuring a consistent and clean connection. -
Ceramic Ferrule
Provides precise fiber alignment and enhanced durability for long-term optical signal integrity. -
OM3/OM4 Compatibility
Fully compatible with laser-optimized multimode fiber infrastructures, supporting high-speed data transmission. -
Low Insertion Loss
Guarantees 0.1dB typical and 0.5dB maximum insertion loss, minimizing signal degradation. -
Reflectance Performance
Features a reflectance rating of ≤ -26 dB, reducing back-reflection interference. -
Quick Installation
Capable of being installed in approximately 50 seconds, boosting technician productivity in the field.
Applications
- Data Center Networks
- Enterprise Local Area Networks (LAN)
- Fiber-to-the-Workstation (FTTD)
- Campus Backbone Cabling
Package Contents
- SC Connector
- Shroud
- Crimp band
- 900µm boot
- 3.0 mm boot
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 95-050-41-X |
| Fiber Type | Multimode 50µm (OM3/OM4) |
| Connector Type | SC |
| Insertion Loss | 0.1dB (typical) / 0.5dB (max) |
| Reflectance | ≤ -26 dB |
| Operating Temperature | -40°F to 167°F |
Frequently Asked Questions
What tool is required for installation?
The connector is intended for use with the UniCam Connector High-Performance Installation Tool Kit (TKT-UNICAM-PFC).
Is this connector compatible with single-mode fiber?
No, this model is specifically designed for 50µm multimode OM3/OM4 fiber.
Does this require adhesive?
No, the UniCam system uses a no-epoxy, no-polish design for field termination.
What is the typical installation time?
Installation can be completed in approximately 50 seconds.
What standards does it meet?
The operating temperature range exceeds EIA/TIA 568-B.3 standards.
