Overview
The Corning 95-050-50 UniCam® Standard-Performance 50μm ST Connector is a field-installable fiber optic solution designed for rapid and reliable termination. This multimode (OM2) connector features a ceramic ferrule to ensure precise alignment and signal integrity in demanding network environments.
Engineered for efficiency, the connector eliminates the need for epoxy or polishing, significantly reducing installation time. It is a suitable choice for data centers, local area networks, and telecommunications facilities where fast, high-quality field termination is required.
Key Features
-
Fast Installation
Installation is completed in approximately 50 seconds using the compatible UniCam Connector High-Performance Installation Tool Kit. -
Ceramic Ferrule
Utilizes a high-precision ceramic ferrule for consistent optical performance and durability. -
No-Epoxy, No-Polish Design
Simplifies the termination process in the field, reducing labor costs and potential for contamination. -
Standard Performance
Provides an insertion loss of 0.3dB (typical) and 0.75dB (maximum), meeting professional networking requirements. -
Wide Operating Temperature
Rated for operation from -40°F to 167°F, exceeding EIA/TIA 568-B.3 standards for environmental robustness. -
FOCIS Compliant
Meets TIA/EIA 604-2 and IEC 61754-2 standards for mechanical and optical compatibility.
Applications
- Local Area Networks (LAN)
- Data Center Interconnects
- Telecommunications infrastructure
- Campus fiber backbone installations

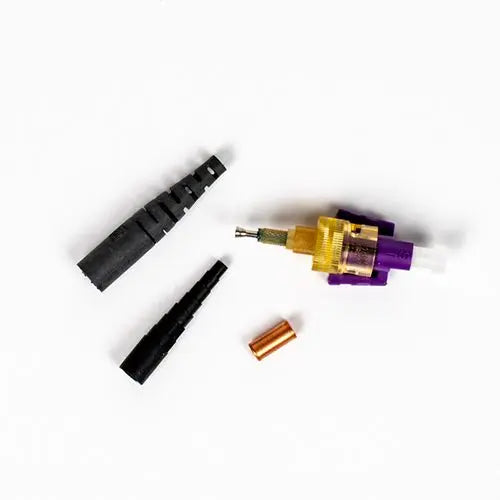

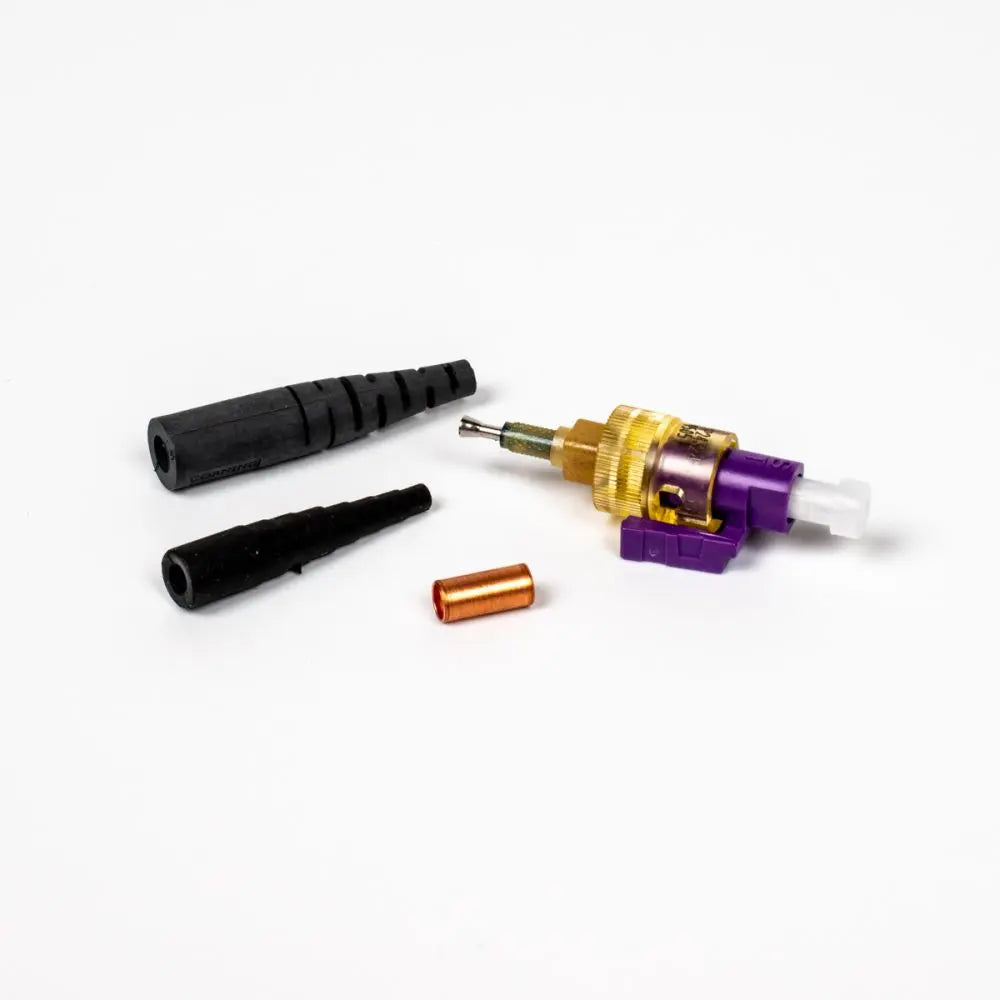

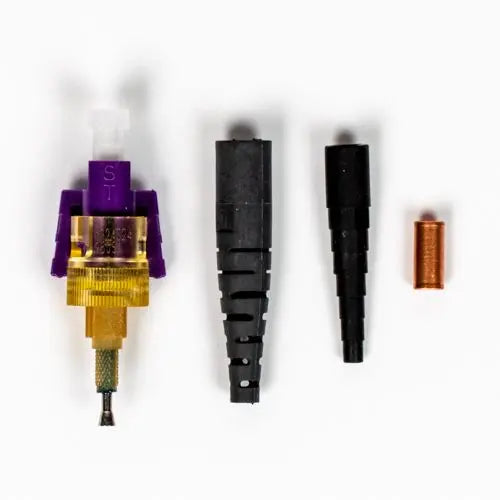

Package Contents
- ST Connector
- Crimp band
- 900μm boot
- 3.0 mm boot
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 95-050-50 |
| Connector Type | ST |
| Fiber Type | Multimode (OM2) |
| Fiber Size | 50μm |
| Insertion Loss | 0.3dB (Typical) / 0.75dB (Maximum) |
| Reflectance | ≤ -26dB |
| Operating Temperature | -40°F to 167°F |
| Standards Compliance | TIA/EIA 604-2, IEC 61754-2, EIA/TIA 568-B.3 |
Frequently Asked Questions
Is an installation kit required for this connector?
Yes, the UniCam Connector High-Performance Installation Tool Kit (TKT-UNICAM-PFC) is required for installation.
What is the maximum insertion loss for this connector?
The maximum insertion loss is 0.75dB.
Does this connector require epoxy or polishing?
No, this is a no-epoxy, no-polish field-installable connector.
What type of fiber is this connector designed for?
It is designed for 50μm multimode fiber (OM2).
What is the operating temperature range?
The operating temperature range is -40°F to 167°F.
