Overview
The Corning 95-050-99 UniCam High-Performance LC Connector is a field-terminable connector designed for rapid and efficient fiber installation. This ceramic ferrule connector supports 50µm multimode fiber (OM2) and is engineered for applications requiring high-precision connectivity with minimal signal loss.
Designed for field environments, this connector utilizes a no-epoxy, no-polish design that significantly reduces installation time. It is suitable for use in data centers, local area networks, and enterprise cabling systems, ensuring consistent optical performance across various network architectures.
Key Features
-
Ceramic Ferrule
Ensures high-precision alignment and durability for sustained optical connectivity. -
No-Epoxy, No-Polish
Eliminates the need for curing ovens and messy adhesives, speeding up termination. -
Fast Installation
Can be installed in approximately 50 seconds using the designated installation tool kit. -
Low Insertion Loss
Guarantees a 0.1dB typical and 0.5dB maximum insertion loss for high signal integrity. -
Wide Operating Temperature
Rated for operation between -40°F to 167°F, exceeding standard EIA/TIA requirements. -
FOCIS Compliant
Meets TIA/EIA 604-10A and IEC61754-20 standards for interoperability.
Applications
- Data Center Networks
- Local Area Networks (LAN)
- Enterprise Building Backbones
- Field Fiber Terminations

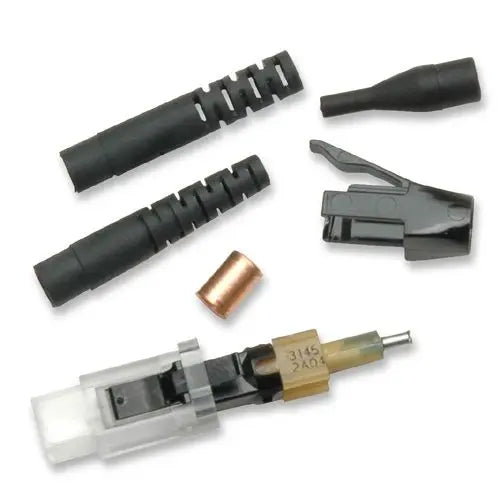

Package Contents
- LC Connector
- Trigger
- Crimp Band
- 900µm Boot
- 3.0 mm Boot
- 2.0 mm Boot
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Part Number | 95-050-99 |
| Fiber Type | 50µm Multimode (OM2) |
| Insertion Loss (Typical) | 0.1 dB |
| Insertion Loss (Max) | 0.5 dB |
| Reflectance | ≤ -26 dB |
| Operating Temperature | -40°F to 167°F |
| Housing/Boot Color | Black |
Frequently Asked Questions
What tool kit is required for installation?
The UniCam High-Performance Installation Tool Kit TKT-UNICAM-PFC is required for installation.
Is this connector polish-required?
No, it is a no-epoxy, no-polish field connector.
What fiber types are compatible?
This specific model is designed for 50µm multimode fiber.
Does it meet industry standards?
Yes, it is FOCIS compliant with TIA/EIA 604-10A and IEC61754-20.
What is the typical insertion loss?
The typical insertion loss is 0.1 dB.
