Overview

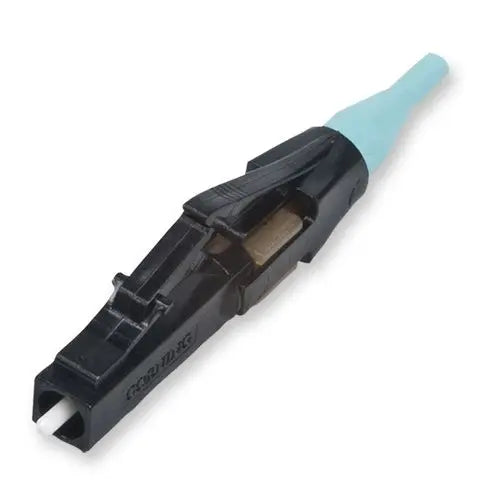

The Corning 95-050-99-X UniCam® 10Gig LC/UPC Connector is a high-performance, field-installable multimode 50μm connector designed for rapid, low-cost network terminations. Engineered for efficiency, these connectors utilize a ceramic ferrule to ensure consistent signal integrity in high-bandwidth environments, including OM3 and OM4 network infrastructures.
This connector features a no-epoxy, no-polish design that allows for installation in approximately 50 seconds when paired with the proper installation tool kit. Its robust construction is rated for an operating temperature range of -40°F to 167°F, exceeding standard EIA/TIA 568-B.3 requirements for reliability in diverse indoor and outdoor environments.
Key Features
-
Fast Termination
Designed for installation in approximately 50 seconds to reduce labor time. -
Low Insertion Loss
Guarantees a 0.1dB typical and 0.5dB maximum insertion loss for optimal signal transmission. -
No-Epoxy/No-Polish
Simplifies the field installation process and eliminates the need for curing ovens or polishing supplies. -
Ceramic Ferrule
Provides precise fiber alignment and enhanced durability for repeated matings. -
Broad Compatibility
Fully compatible with OM3 and OM4 multimode fiber systems for 10G network applications. -
Extended Temperature Range
Operating temperature range of -40°F to 167°F ensures performance across varying environmental conditions.
Applications
- Data center cabling
- Enterprise LAN networks
- Fiber-to-the-Workstation (FTTW)
- Network repair and maintenance
Package Contents
- LC/UPC Connector
- Trigger
- Crimp Band
- 900μm Boot
- 3.0mm Boot
- 2.0mm Boot
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 95-050-99-X |
| Connector Type | LC/UPC |
| Fiber Size | 50μm |
| Fiber Compatibility | OM3/OM4 |
| Typical Insertion Loss | 0.1 dB |
| Maximum Insertion Loss | 0.5 dB |
| Reflectance | ≤ -26 dB |
| Operating Temperature | -40°F to 167°F |
| Housing Color | Black |
| Boot Color | Aqua |
Frequently Asked Questions
Is this connector compatible with OM3/OM4 fiber?
Yes, it is designed for 50μm multimode fiber and is compatible with OM3 and OM4 standards.
What installation tools are required?
Installation requires the UniCam Connector High-Performance Installation Tool Kit (TKT-UNICAM-PFC), which is sold separately.
Does this require epoxy or polishing?
No, the UniCam design is a no-epoxy, no-polish connector, simplifying the termination process.
What is the maximum insertion loss?
The connector is guaranteed for a 0.5dB maximum insertion loss.
What does the package include?
The kit includes the connector, trigger, crimp band, and various boots (900μm, 3.0mm, and 2.0mm) to support different cable diameters.
