Overview

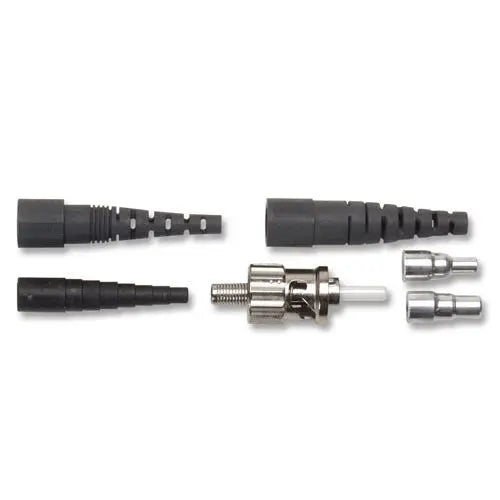

The Corning 95-051-52-SP Anaerobic-Cure ST Connector is a high-performance, field-installable connector designed for multimode fiber optic networking applications. This connector streamlines the termination process by utilizing anaerobic adhesive technology, which eliminates the need for curing lamps or heat ovens. This allows for rapid installation and termination in the field, reducing downtime for data center operators and network technicians.
Engineered for precision, this ST-style connector supports 50µm fiber and provides consistent signal integrity with an average insertion loss of 0.2dB. The kit includes versatile boots compatible with 3mm, 2mm, and 900µm cable diameters, ensuring adaptability for a wide range of standard fiber optic installations.
Key Features
-
Anaerobic Adhesive System
Uses a two-part epoxy process that cures quickly without requiring ovens or UV lamps. -
Rapid Field Termination
Reduces installation time to minutes, significantly increasing efficiency for field technicians. -
Low Insertion Loss
Maintains an average insertion loss of 0.2dB for reliable signal transmission. -
Flexible Compatibility
Includes specialized boots to fit 3mm, 2mm, and 900µm fiber cable diameters. -
ST Connector Standard
Industry-standard ST interface ensures compatibility with existing legacy hardware. -
Optimized for 50µm Fiber
Designed specifically for 50µm multimode fiber environments.
Applications
- Enterprise network cabling
- Data center infrastructure
- Local Area Network (LAN) backbone installations
- Premise wiring and fiber distribution
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 95-051-52-SP |
| Connector Type | ST |
| Fiber Type | Multimode |
| Fiber Size | 50µm |
| Average Insertion Loss | 0.2dB |
| Maximum Insertion Loss | 0.75dB |
| Included Boots | 3mm, 2mm, 900µm |
Frequently Asked Questions
Does this connector require a curing oven?
No, this is an anaerobic-cure connector, which cures at room temperature using a two-part anaerobic adhesive, eliminating the need for ovens or lamps.
Is this connector compatible with 62.5µm fiber?
No, this model is specifically designed for 50µm multimode fiber.
What cable sizes can this connector accommodate?
The kit comes with interchangeable boots compatible with 3mm, 2mm, and 900µm cable diameters.
What is the maximum insertion loss for this connector?
The maximum insertion loss is 0.75dB, with an average performance of 0.2dB.
Can I use this for field repairs?
Yes, its quick-cure design is specifically optimized for efficient field termination and repair.
