Overview
The Corning 95-051-61-SP Anaerobic-Cure FC Connector is a high-performance fiber optic termination solution engineered specifically for 50µm multimode fiber environments. By utilizing an anaerobic adhesive process, this connector provides the durable performance typically associated with traditional epoxy connectors while significantly reducing installation time in the field.
Designed for rapid deployment, this connector eliminates the need for curing lamps or ovens. The installation process is completed in just minutes, making it an ideal choice for contractors and technicians working in demanding network environments where speed and reliability are essential.
Key Features
-
Anaerobic Adhesive System
Uses a two-part epoxy process for rapid curing, enabling faster field terminations without auxiliary heating tools. -
Multimode 50µm Compatibility
Optimized for 50µm multimode fiber infrastructures, ensuring consistent optical transmission. -
FC Connector Interface
Standard FC format provides a secure threaded connection for stable operation in vibration-prone settings. -
Low Insertion Loss
Maintains an average insertion loss of 0.2dB, maximizing signal integrity across the connection point. -
Maximum Tolerance Performance
Rated for a maximum insertion loss of 0.75dB to ensure reliable performance even under less-than-ideal conditions. -
Flexible Boot Inclusions
Supplied with 3mm, 2mm, and 900µm boots for compatibility with various cable jackets.
Applications
- Field fiber network installation
- Multimode fiber patch panel termination
- Enterprise LAN/WAN connectivity
- Data center cabling repairs
Package Contents

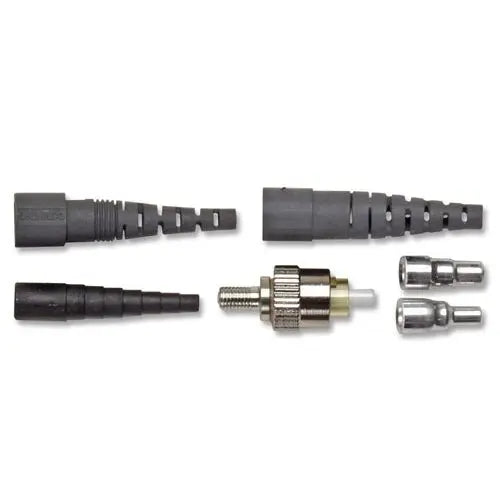

- 1x Anaerobic FC 50um Multimode Connector
- 1x 3mm Boot
- 1x 2mm Boot
- 1x 900µm Boot
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 95-051-61-SP |
| Connector Type | FC |
| Fiber Type | Multimode |
| Core Size | 50µm |
| Average Insertion Loss | 0.2dB |
| Maximum Insertion Loss | 0.75dB |
Frequently Asked Questions
Does this connector require an oven to cure?
No, it uses an anaerobic adhesive process that cures quickly without the need for heat lamps or curing ovens.
What fiber sizes are compatible?
This connector is specifically designed for 50µm multimode fiber.
What is included with the connector?
The package includes the connector body and three different boot sizes (3mm, 2mm, and 900µm) to accommodate common cable types.
What is the typical insertion loss?
The average insertion loss is 0.2dB, with a maximum specified loss of 0.75dB.
Is this for single mode or multimode?
This is a multimode connector.
