Overview
The Corning 95-051-98-SP Anaerobic-Cure LC Connector is a field-installable fiber optic connector designed for 50µm multimode applications. This connector combines the rapid installation benefits of anaerobic adhesive systems with the high-performance characteristics typically associated with standard epoxy and polish connectors.
Engineered for efficiency, the connector can be terminated in minutes without the requirement for curing lamps or ovens. It is an ideal choice for contractors and data center technicians who require a fast, reliable, and high-quality termination solution in the field.
Key Features
-
Anaerobic Adhesive Technology
Allows for rapid curing in minutes, significantly reducing termination time on the job site. -
LC Form Factor
Provides a high-density, small-form-factor connection suitable for modern network equipment. -
Multimode 50µm Compatibility
Optimized for use with 50µm laser-optimized multimode fiber cabling. -
Field-Installable
Designed for quick, on-site termination without needing specialized heating equipment like ovens or lamps. -
Performance Standard
Delivers an average insertion loss of 0.2dB to maintain signal integrity. -
Versatile Boot Options

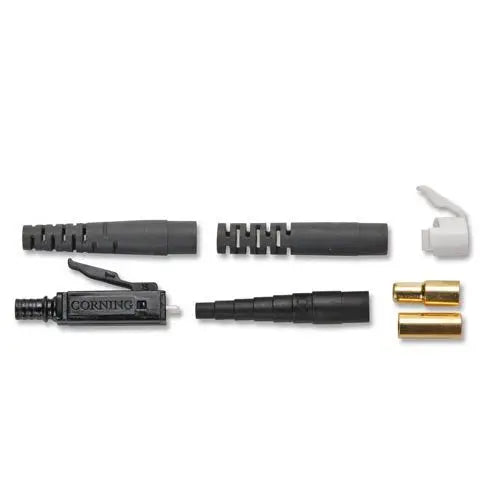

Includes 3mm, 2mm/1.6mm combo, and 900µm boots for compatibility with various cable diameters.
Applications
- Data Center connectivity
- Enterprise LAN/WAN installations
- Fiber-to-the-Desk (FTTD)
- Field repair and termination of fiber networks
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 95-051-98-SP |
| Connector Type | LC |
| Fiber Type | Multimode |
| Fiber Size | 50µm |
| Average Insertion Loss | 0.2dB |
| Maximum Insertion Loss | 0.75dB |
Frequently Asked Questions
Does this connector require an oven to cure?
No, it utilizes an anaerobic adhesive process which cures in minutes without the need for heat or specialized lamps.
What types of fiber are supported?
This specific connector is designed for 50µm multimode fiber.
What boot sizes are included?
The package includes a 3mm boot, a 2mm/1.6mm combo boot, and a 900µm boot.
What is the typical insertion loss?
The average insertion loss is 0.2dB.
Is this connector TAA compliant?
No, this model is non-TAA compliant.
