Corning 95-101-41-SP Anaerobic SC 62.5um Multimode Connector

Overview

The Corning 95-101-41-SP is an anaerobic-cure SC connector engineered for efficient field termination of 62.5µm multimode fiber optic cables. This connector provides a streamlined installation process, combining the rapid-cure benefits of anaerobic adhesive with the high performance typically associated with traditional epoxy and polish connectors.

Designed for field environments, this connector eliminates the requirement for power-intensive heat sources such as curing ovens or UV lamps, significantly reducing setup time. The installation can be completed in minutes, making it a practical choice for network technicians performing onsite terminations.

Key Features

• Anaerobic Adhesive System
  Uses a two-part epoxy process that cures rapidly without the need for external heat or lamps, enabling faster onsite terminations.
• Multimode Compatibility
  Optimized for 62.5µm multimode fiber, ensuring compatibility with standard legacy fiber network infrastructures.
• Low Insertion Loss
  Features an average insertion loss of 0.2dB to ensure efficient signal transmission with a maximum rated loss of 0.75dB.
• Universal Boot Inclusions
  Supplied with beige boots compatible with 3mm, 2mm, and 900µm cable diameters for versatile field application.
• SC Connector Interface
  Utilizes the standard SC form factor, offering reliable push-pull mating for secure network connectivity.
• Field-Ready Design
  Engineered for quick assembly, reducing downtime during network upgrades or repairs.

Applications

• Local Area Network (LAN) backbone installations
• Fiber-to-the-Workstation (FTTD) connectivity
• Data center cable termination
• Premise network troubleshooting and repair
• Multimode fiber network expansion

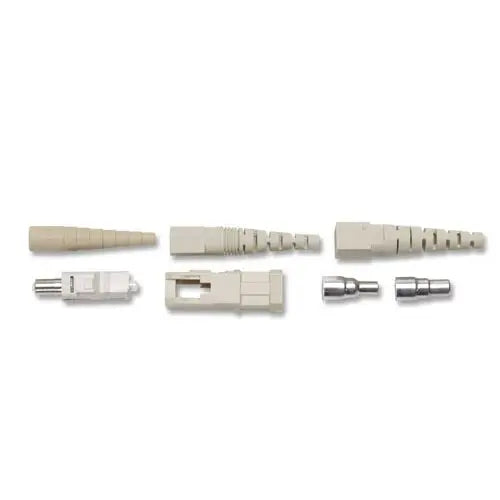

Package Contents

• 1 x Corning 95-101-41-SP Anaerobic SC 62.5um Multimode Connector
• 1 x 3mm Boot
• 1 x 2mm Boot
• 1 x 900µm Boot

Technical Specifications

Frequently Asked Questions

Does this connector require a curing oven?
No, this connector utilizes an anaerobic adhesive process which cures at room temperature without the need for heat lamps or curing ovens.

What fiber types is this connector designed for?
It is specifically designed for 62.5µm multimode fiber optic cable.

Are different boot sizes included?
Yes, the package includes beige boots suitable for 3mm, 2mm, and 900µm cable constructions.

What is the maximum insertion loss?
The maximum rated insertion loss for this connector is 0.75dB.

Is this a single-mode connector?
No, this is a multimode connector. Single-mode versions have different part numbers.
