Overview

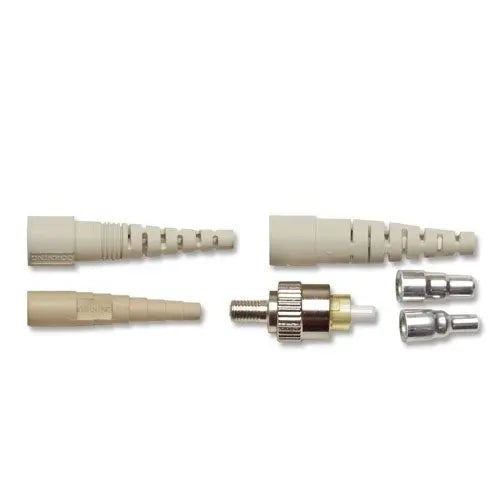

The Corning 95-101-61-SP Anaerobic-Cure FC Connector is a high-performance, field-termination solution engineered specifically for 62.5µm multimode fiber optic networks. Designed for rapid deployment, this connector utilizes an anaerobic adhesive system that eliminates the requirement for power-consuming curing lamps or heat ovens, significantly reducing installation time in the field.
By combining the efficiency of a fast-cure adhesive process with the mechanical integrity of traditional epoxy and polish connectors, this solution provides a robust interface suitable for enterprise and data center environments. Each connector includes compatible 3mm, 2mm, and 900µm boots, ensuring versatility across various cabling architectures.
Key Features
-
Anaerobic Adhesive Technology
Enables rapid field termination without the need for thermal curing ovens or UV lamps. -
Multimode Optimization
Designed specifically for 62.5µm core diameter fiber to ensure modal compatibility. -
Low Insertion Loss
Delivers an average insertion loss of 0.2dB for improved signal integrity. -
Field-Proven Reliability
Maintains the performance characteristics equivalent to traditional factory-polished epoxy connectors. -
Versatile Boot Compatibility
Includes specialized boots to accommodate 3mm, 2mm, and 900µm cable diameters. -
Rapid Installation
Installation process is completed in just minutes, maximizing technician productivity.
Applications
- Enterprise LAN/WAN backbones
- Data center fiber infrastructure
- Telecommunications distribution frames
- Fiber optic maintenance and repair
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 95-101-61-SP |
| Connector Type | FC |
| Fiber Type | Multimode |
| Core Size | 62.5µm |
| Average Insertion Loss | 0.2dB |
| Maximum Insertion Loss | 0.75dB |
Frequently Asked Questions
What type of curing process is required for this connector?
This connector uses an anaerobic adhesive, which cures at room temperature without requiring lamps or ovens.
Is this connector compatible with different cable sizes?
Yes, the package includes boots for 3mm, 2mm, and 900µm cable diameters.
What is the maximum insertion loss?
The connector is rated for a maximum insertion loss of 0.75dB, with an average performance of 0.2dB.
Is this for single-mode or multimode fiber?
This specific model is designed for 62.5µm multimode fiber.
