Overview

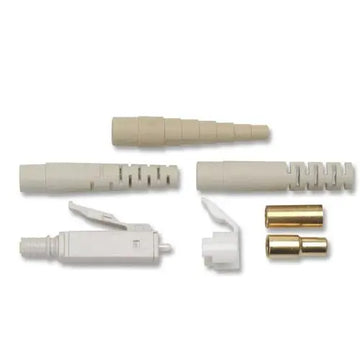

The Corning 95-101-98-SP Anaerobic-Cure LC Connector is a field-terminable solution engineered for high-performance multimode fiber optic networks. Designed for 62.5µm fiber, this connector combines the operational efficiency of anaerobic adhesive technology with the rigorous performance standards of traditional epoxy and polish connectors.
This connector is optimized for rapid deployment, allowing for installation in minutes without the need for specialized curing lamps or thermal ovens. It is intended for use in environments where time-sensitive fiber terminations are required while maintaining high signal integrity. The package includes a comprehensive set of strain-relief boots to accommodate multiple cable diameters, ensuring robust support and protection for the fiber link.
Key Features
- Anaerobic-Cure Adhesive: Reduces installation time by enabling quick-set adhesion without heat, increasing on-site productivity.
- LC Connector Interface: Provides a small-form-factor design suitable for high-density patch panels and network equipment.
- Multimode Compatibility: Optimized for 62.5µm (OM1) fiber types to support standard local area network architectures.
- Low Insertion Loss: Delivers an average insertion loss of 0.2dB for consistent signal transmission.
- Robust Construction: Built to meet strict optical performance standards with a maximum loss rating of 0.75dB.
- Versatile Boot Options: Supplied with 3mm, 2mm/1.6mm, and 900µm boots for compatibility with various fiber cable jacket types.
Applications
- Data center cabling and interconnects
- Local Area Networks (LAN)
- Premise wiring and enterprise backbones
- Quick-turn fiber repair and restoration

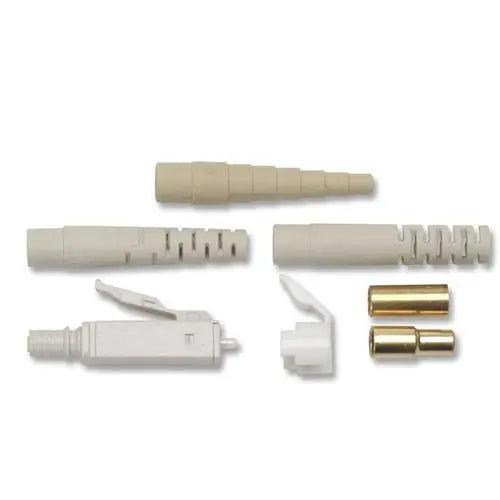

Package Contents
- 1 x LC Multimode Connector
- 1 x 3mm Boot
- 1 x 2mm/1.6mm Combo Boot
- 1 x 900µm Boot
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 95-101-98-SP |
| Connector Type | LC |
| Fiber Type | Multimode |
| Fiber Core Size | 62.5µm |
| Average Insertion Loss | 0.2dB |
| Maximum Insertion Loss | 0.75dB |
Frequently Asked Questions
What is the benefit of an anaerobic connector?
Anaerobic connectors use a two-part adhesive system that sets rapidly at room temperature, eliminating the need for bulky curing ovens or power-consuming heat sources.
Are these connectors reusable?
No, these are field-installable connectors designed for permanent installation.
What fiber core size does this connector support?
This specific model is engineered for 62.5µm multimode fiber.
Does this kit include everything needed for installation?
The connector package includes the necessary assembly components and boots; however, standard fiber preparation tools and the anaerobic adhesive chemistry are generally required for termination.
Can I use this for single-mode fiber?
No, this model is specified for multimode applications. Using this on single-mode fiber will result in high optical loss and poor performance.
