Overview
The Corning 95-200-41-Z UniCam® High-Performance Connectors are designed to provide a rapid, reliable field-termination solution for single-mode fiber networks. Featuring a ceramic ferrule, these connectors are engineered for high-precision OS2 applications, ensuring low insertion loss and excellent optical performance in demanding network environments.
These connectors feature a no-epoxy design, allowing for rapid installation in approximately 50 seconds when used with the compatible UniCam Connector High-Performance Installation Tool Kit. Built for durability, they operate across a wide temperature range, exceeding EIA/TIA 568-B.3 standards, making them an ideal choice for data centers, telecommunications, and enterprise network installations.
Key Features
-
Ceramic Ferrule Design
Ensures high durability and consistent alignment for improved signal integrity. -
Fast Field Termination
Can be installed in approximately 50 seconds, significantly reducing on-site labor time. -
No-Epoxy Process
Eliminates the need for curing, streamlining the installation workflow. -
High Optical Performance
Guarantees a 0.2dB typical insertion loss, providing efficient transmission. -
Reflectance Rating
Features ≤ -55dB reflectance, minimizing back-reflection in sensitive optical systems. -
Compliant Standards
Fully compliant with FOCIS, TIA/EIA 604-10A, and IEC61754-20 for assured quality. -
Broad Operating Temperature
Rated for -40°F to 167°F, ensuring stable performance in diverse environmental conditions.
Applications
- Data Center Networks
- Telecommunications Infrastructure
- Enterprise LAN/WAN Networks
- Field Fiber Termination and Repair

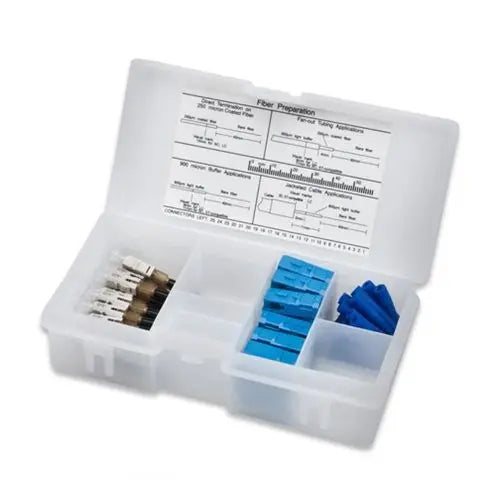

Package Contents
- 25 x SC/UPC Connectors
- 25 x Shrouds
- 25 x 900µm Boots
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 95-200-41-Z |
| Connector Type | SC/UPC |
| Fiber Mode | Singlemode (OS2) |
| Insertion Loss | 0.2dB (Typical) / 0.5dB (Maximum) |
| Reflectance | ≤ -55dB |
| Operating Temperature | -40°F to 167°F |
| Housing Color | Blue |
| Boot Color | Blue |
Frequently Asked Questions
What tool is required to install these connectors?
Installation requires the UniCam Connector High-Performance Installation Tool Kit (TKT-UNICAM-PFC), which is sold separately.
Can these be used for multimode fiber?
No, these are specifically designed for single-mode (OS2) applications.
What is the typical installation time?
These connectors can be installed in approximately 50 seconds.
Does this kit include everything needed for 25 terminations?
Yes, the package includes the connectors, shrouds, and 900µm boots for 25 individual terminations.
Are these connectors field-installable?
Yes, they are specifically designed for fast, no-epoxy field termination.
