Overview
The Corning 95-200-44 UniCam® High-Performance Connector is a field-installable single-mode SC/APC fiber optic connector designed for rapid and reliable network deployment. By utilizing a high-precision ceramic ferrule, this connector minimizes signal loss and ensures high optical consistency without the need for traditional field polishing or epoxy application.
Engineered for high-performance applications, this connector is capable of being installed in approximately 50 seconds using the standard UniCam high-performance installation tool kit. It is designed to operate in challenging environments with a temperature range that exceeds EIA/TIA 568-B.3 requirements, making it suitable for a variety of enterprise and data center network environments.
Key Features
-
Fast Field Termination
Allows for installation in approximately 50 seconds, significantly reducing on-site labor time. -
Ceramic Ferrule
Ensures high-precision alignment for consistent signal integrity and reduced connection loss. -
No Epoxy or Polish Required
Simplifies the termination process and eliminates the need for messy adhesives or time-consuming polishing steps. -
Factory-Polished End-Face
Provides consistent optical performance straight out of the package for high-quality connections. -
Wide Operating Temperature
Functions reliably from -40°F to 167°F, exceeding standard industry requirements for diverse climates. -
RoHS Compliant
Meets 2011/65/EU standards for environmental safety and material compliance. -
Easy Visual Identification
Features a distinct green housing and boot, clearly identifying the connector as an APC type.
Applications
- Data center fiber infrastructure
- Enterprise LAN/WAN networks
- Field fiber cable termination and repairs
- FTTx installations

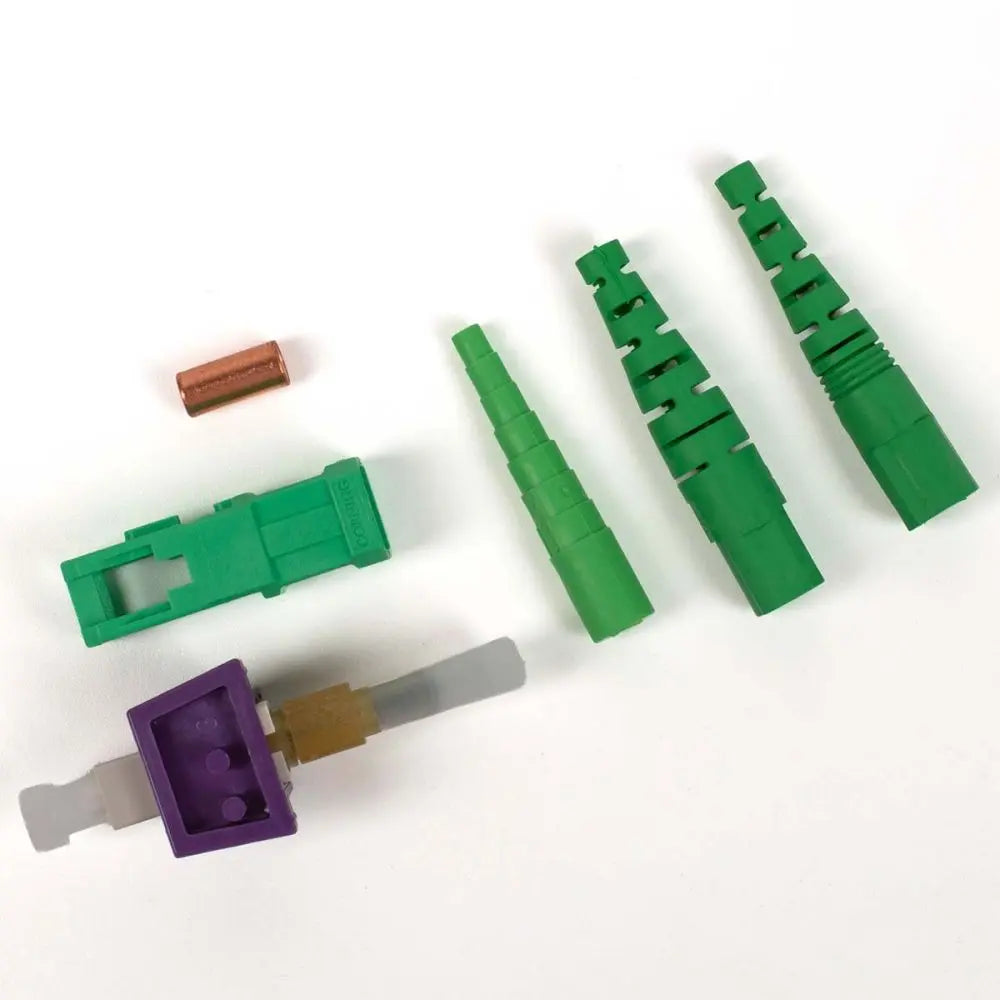

Package Contents

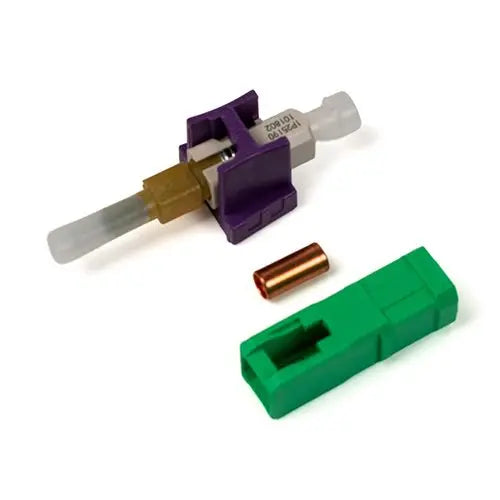

- SC/APC Connector
- Shroud
- Crimp band

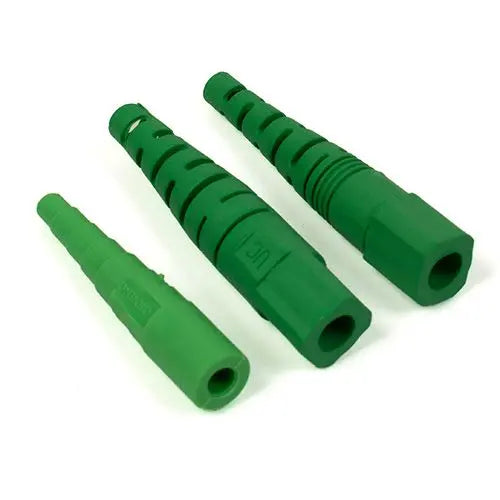

- 900µm boot
- 3mm boot
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Part Number | 95-200-44 |
| Connector Type | SC/APC |
| Fiber Mode | Single Mode |
| Maximum Insertion Loss | 0.75 dB |
| Operating Temperature | -40°F to 167°F |
| Standards Compliance | EIA/TIA 568-B.3, RoHS 2011/65/EU |
Frequently Asked Questions
Does this connector require epoxy?
No, the UniCam connector is a no-epoxy, no-polish field-termination solution.
What is the maximum insertion loss?
This connector guarantees a maximum insertion loss of 0.75 dB per connector pair.
What installation tool is required?
It requires the UniCam Connector High-Performance Installation Tool Kit (TKT-UNICAM-PFC), which is sold separately.
Can this be used in extreme temperatures?
Yes, it is rated for operating temperatures between -40°F and 167°F, exceeding standard industry requirements.
What is included in the package?
The package includes the connector, shroud, crimp band, 900µm boot, and 3mm boot.
