Overview
The Corning 95-200-44-Z UniCam Single Mode OS2 SC/APC Connectors provide a high-performance, field-installable termination solution. Engineered with a composite ferrule and housing, these connectors are designed for rapid deployment in single-mode fiber networks, eliminating the need for epoxy, adhesives, or field polishing.
By utilizing a factory-polished connector end-face, these connectors ensure consistent, repeatable optical performance across every installation. The connectors are optimized for efficient field termination, requiring approximately 50 seconds per connection when used with the compatible UniCam high-performance installation tool kit. They are suitable for a wide range of environments, exceeding EIA/TIA 568-B.3 standards for temperature resilience.
Key Features
-
Field-Installable Design
Allows for quick, efficient termination without the time-consuming process of applying epoxy or polishing, reducing installation time. -
High-Performance Optical Specs
Guarantees a maximum insertion loss of 0.75dB per connector pair for reliable network integrity. -
Factory-Polished End-Face
Ensures consistent optical geometry and performance right out of the box, minimizing the risk of errors during field termination. -
Composite Construction
Features a durable composite ferrule and housing designed for stable performance in varied operating environments. -
Industry Standard Compliance
Exceeds EIA/TIA 568-B.3 standards and maintains compliance with RoHS 2011/65/EU for safety and environmental regulations. -

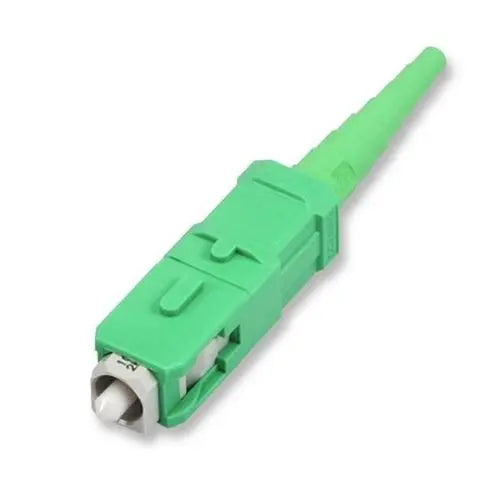

Visual Identification
Includes green housing and green boots for easy identification as an APC (Angled Physical Contact) connector.
Applications
- Enterprise LAN/WAN Networks
- Data Center Interconnects
- Fiber-to-the-x (FTTx) deployments
- Local Area Network upgrades

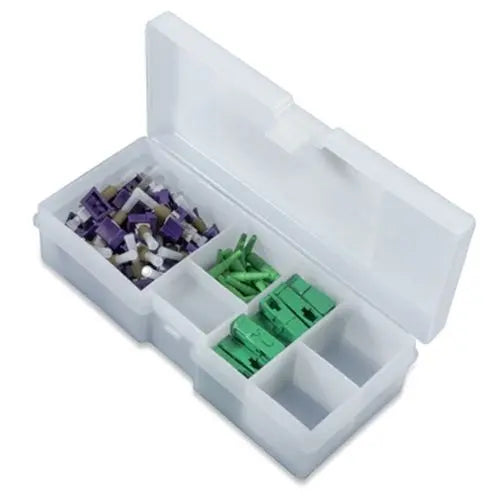

Package Contents
- 25 x SC/APC Connectors
- Shrouds
- Crimp bands
- 900µm boots
- 3mm boots
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Part Number | 95-200-44-Z |
| Connector Type | SC/APC |
| Fiber Mode | Single Mode (OS2) |
| Maximum Insertion Loss | 0.75dB |
| Operating Temperature | -40°F to 167°F |
| Certifications | RoHS 2011/65/EU, Exceeds EIA/TIA 568-B.3 |
Frequently Asked Questions
Does this kit require specialized tools?
Yes, it is designed for use with the UniCam Connector High-Performance Installation Tool Kit (TKT-UNICAM-PFC), which is sold separately.
Are these connectors suitable for multi-mode fiber?
No, these specific connectors are engineered for Single Mode (OS2) fiber only.
What does the Z suffix in the part number indicate?
The Z suffix denotes the standard commercial packaging for this connector pack.
Is polishing required in the field?
No, these connectors arrive factory-polished, requiring no epoxy or polishing during installation.
What is the maximum insertion loss for these connectors?
Each connector pair is guaranteed to have a maximum insertion loss of 0.75dB.
