Overview
The Corning 95-200-51 UniCam High-Performance Connector is a single mode ST/UPC fiber connector featuring a ceramic ferrule. Engineered for rapid field-termination, this connector simplifies deployment in local area networks, data centers, and telecommunications environments where efficiency is critical.
This no-epoxy connector utilizes a proven mechanical termination process, allowing for installation in approximately 50 seconds. Designed for single mode OS2 fiber, it ensures high optical performance and consistent connectivity. The connector is built for demanding operating environments, with temperature resilience exceeding standard requirements.
Key Features
-
Field-Installable Design
Enables rapid termination in approximately 50 seconds, reducing overall installation time and labor costs. -
Ceramic Ferrule
Provides precise fiber alignment for high-performance signal transmission. -
No-Epoxy Technology
Eliminates the need for heat curing and chemical adhesives, facilitating a cleaner and faster termination process. -
High Optical Performance
Guarantees a 0.2dB typical and 0.5dB maximum insertion loss for reliable network signal integrity. -
Low Reflectance
Maintains a reflectance rating of ≤ -55dB, minimizing signal backscatter. -
Wide Operating Temperature
Capable of functioning between -40°F and 167°F, exceeding standard EIA/TIA 568-B.3 requirements.
Applications
- Data Center fiber patching
- Enterprise network infrastructure
- Telecommunications distribution
- Local Area Network (LAN) backbone installations

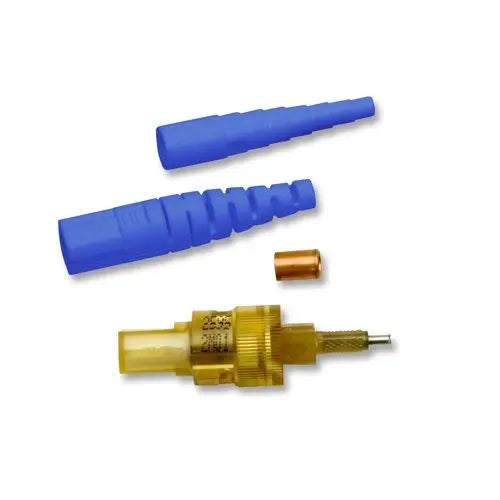

Package Contents
- ST/UPC Connector
- Crimp band
- 900µm boot
- 3.0 mm boot
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 95-200-51 |
| Connector Type | ST/UPC |
| Fiber Type | Single Mode (OS2) |
| Insertion Loss | 0.2dB typical / 0.5dB max |
| Reflectance | ≤ -55dB |
| Operating Temperature | -40°F to 167°F |
| Standards | FOCIS compliant with TIA/EIA 604-2 and IEC61754-2 |
Frequently Asked Questions
What installation tool is required for this connector?
The connector is intended for use with the UniCam Connector High-Performance Installation Tool Kit (TKT-UNICAM-PFC), which is sold separately.
Does this connector require epoxy?
No, this is a mechanical, no-epoxy connector designed for fast field assembly.
What is the typical insertion loss for this connector?
The typical insertion loss is 0.2dB, with a maximum limit of 0.5dB.
Is this connector compatible with single mode fiber?
Yes, it is designed specifically for single mode OS2 fiber applications.
What does the package include?
The package includes the ST/UPC connector body, a crimp band, and both 900µm and 3.0 mm boots.
