Overview

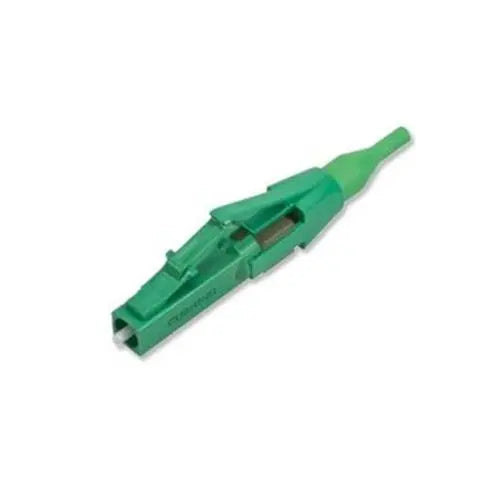

The Corning 95-200-94-Z UniCam® LC/APC single-mode connectors are designed for rapid, field-installable fiber terminations. Featuring a factory-polished end-face, these connectors eliminate the need for field epoxy or polishing, significantly reducing installation time in data centers and enterprise networks.
Engineered with a composite ferrule and housing, this LC/APC solution ensures consistent optical performance for OS2 single-mode applications. Each unit is designed for a quick, 50-second installation process when paired with the compatible UniCam high-performance installation tool kit.
The connectors are rated for operating temperatures ranging from -40°F to 167°F, meeting and exceeding EIA/TIA 568-B.3 standards for reliability in various environments. The kit includes 25 connectors, 25 triggers, and 25 boots, providing a complete solution for high-density fiber management.
Key Features
-
Fast Termination
Capable of being installed in approximately 50 seconds, reducing field labor time and costs. -
No Epoxy or Polish
Eliminates complex field termination steps, ensuring cleaner and more consistent results. -
Factory-Polished End-Face
Delivers precise optical geometry for repeatable performance across all connectors. -
LC/APC Performance
Provides low insertion loss of 0.75 dB maximum, ideal for critical high-performance networks. -
Wide Operating Temperature
Designed for environments from -40°F to 167°F, exceeding EIA/TIA 568-B.3 standards. -
RoHS Compliant
Meets 2011/65/EU environmental and safety regulations for sustainable network deployments. -
High-Visibility Identification
Green housing and boot coloring explicitly identify the APC polish for easy maintenance.
Applications
- Enterprise LAN/WAN networks
- Data center fiber infrastructure
- FTTx deployments
- High-density fiber optic patch panels

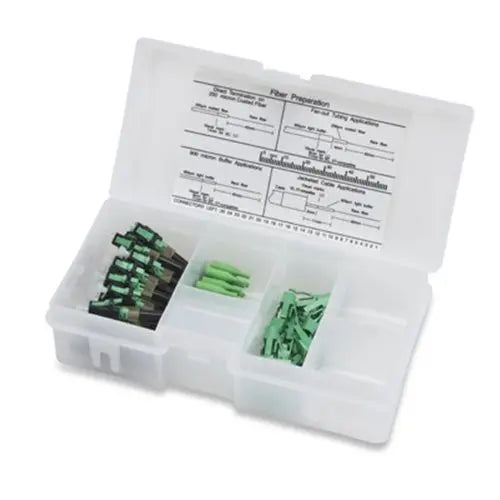

Package Contents
- 25 x LC/APC Connectors
- 25 x Triggers
- 25 x Boots (900 µm)
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 95-200-94-Z |
| Fiber Type | Single-Mode (OS2) |
| Connector Type | LC/APC |
| Maximum Insertion Loss | 0.75 dB |
| Operating Temperature | -40°F to 167°F |
| Housing/Boot Color | Green |
| Standards | EIA/TIA 568-B.3, RoHS 2011/65/EU |
Frequently Asked Questions
Do I need a special tool kit to install these?
Yes, the installation requires the UniCam Connector High-Performance Installation Tool Kit (TKT-UNICAM-PFC), sold separately.
Does this connector require epoxy?
No, UniCam connectors are designed for field installation without the use of epoxy or manual polishing.
What is the maximum insertion loss?
The connector pair guarantees a maximum insertion loss of 0.75 dB.
Can these be used for single-mode fiber?
Yes, these are OS2 single-mode LC/APC connectors.
What is the fiber compatibility for the included boots?
The included boots are designed for 900 µm fiber.
