Overview

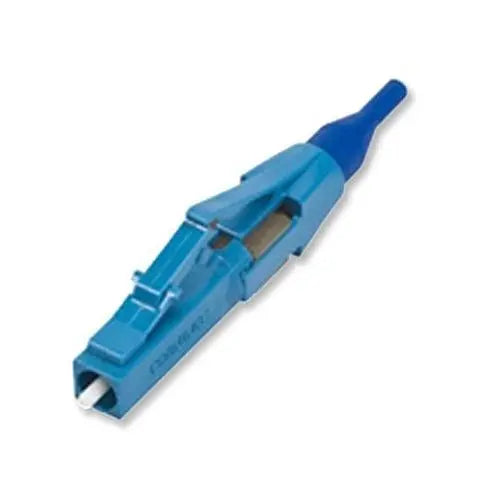

The Corning 95-200-99-Z UniCam® Single Mode LC/UPC Connectors provide a high-performance field-termination solution for OS2 fiber optic networks. Designed with a composite ferrule and housing, these connectors facilitate rapid deployment in data centers, telecommunications rooms, and enterprise LANs. The factory-polished end-face eliminates the need for field epoxy or polishing, significantly reducing installation time and complexity.
These connectors are engineered to deliver consistent optical performance, with each pair guaranteeing a maximum insertion loss of 0.5dB. The installation process is highly efficient, typically requiring only 50 seconds when used with the appropriate UniCam high-performance installation tool kit. Designed for demanding environments, these connectors maintain reliable operation across an extensive temperature range.
Key Features
-
Factory-Polished End-Face
Ensures consistent, repeatable optical performance without field polishing. -
Epoxy-Free Termination
Eliminates the time and mess associated with traditional epoxy-based connector installation. -
Field-Installable Design
Optimized for quick deployment with a typical installation time of 50 seconds. -
Composite Construction
Utilizes high-quality composite materials for the ferrule and housing to balance durability and cost. -
Broad Operating Temperature
Rated for performance from -40°F to 167°F, exceeding EIA/TIA 568-B.3 standards. -
Standard Compliance
Meets RoHS 2011/65/EU requirements for environmental safety. -
Optimized for OS2
Specifically designed for Single Mode OS2 fiber infrastructure.
Applications
- Data Center backbone cabling
- Enterprise Local Area Networks (LAN)
- Telecommunications cross-connects
- Fiber-to-the-Desk (FTTD) installations
- Rapid field network repairs

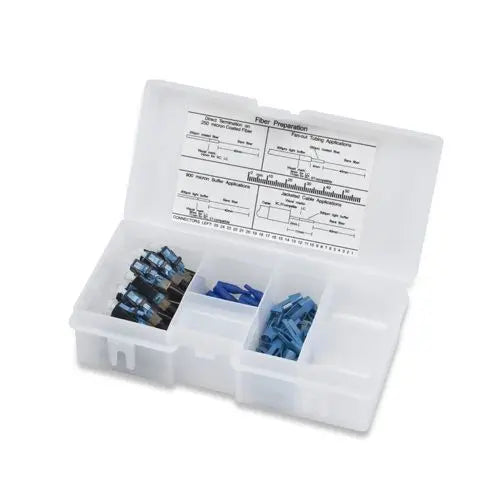

Package Contents
- 25 x LC/UPC Connectors
- 25 x Triggers
- 25 x Boots (900 μm)
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 95-200-99-Z |
| Connector Type | LC/UPC |
| Fiber Type | Single Mode (OS2) |
| Insertion Loss | 0.5 dB (Maximum) |
| Operating Temperature | -40°F to 167°F |
| RoHS Compliance | 2011/65/EU |
| Pack Quantity | 25 |
Frequently Asked Questions
Are tools included in this package?
No, the connectors require the UniCam Connector High-Performance Installation Tool Kit (TKT-UNICAM-PFC), which is sold separately.
Does this connector require epoxy?
No, the UniCam design is a mechanical splice connector and does not require epoxy or field polishing.
Can these be used for multi-mode fiber?
No, these are specifically designed for Single Mode OS2 applications.
What is the typical installation time?
When using the recommended high-performance installation tool kit, the installation time is approximately 50 seconds.
Does this meet EIA/TIA standards?
Yes, the performance characteristics exceed the requirements defined in the EIA/TIA 568-B.3 standard.
