Overview

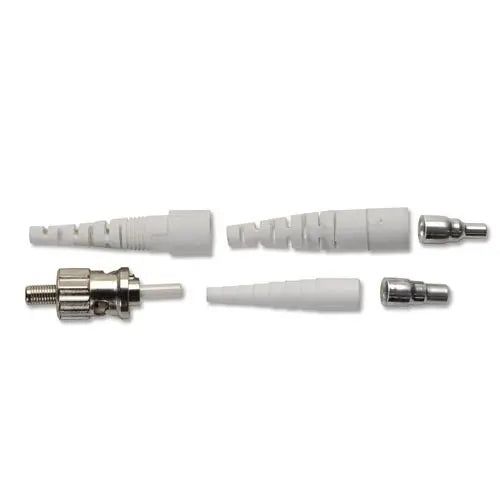

The Corning 95-201-52-SP Anaerobic-Cure ST Connector is a high-performance fiber optic connector engineered for rapid field termination of single mode fiber. Designed to combine the efficiency of anaerobic adhesive technology with the rigorous performance standards of traditional epoxy and polish connectors, it provides an ideal solution for technicians requiring high-quality results in minimal time.
Installation is significantly streamlined through a two-part anaerobic adhesive process, which eliminates the need for curing lamps or heat ovens. This enables rapid assembly in the field, making it suitable for various indoor and outdoor fiber optic network environments. Each connector is constructed to ensure robust mechanical integrity and consistent optical signal transmission.
Key Features
-
Anaerobic Adhesive Curing
Uses a two-part adhesive system for rapid termination without curing lamps or ovens. -
Single Mode Optimization
Precision-engineered to meet the specific requirements of single mode fiber optic networks. -
Average Insertion Loss 0.2dB
Delivers high signal clarity and minimal attenuation for improved network performance. -
Maximum Insertion Loss 0.75dB
Ensures consistent connectivity even within the specified tolerance limits of the connector. -
Universal Boot Compatibility
Includes specialized boots to support 3mm, 2mm, and 900µm cable diameters. -
ST Connector Interface
Standard ST style form factor ensures compatibility with legacy hardware and high-density distribution panels.
Applications
- Local Area Networks (LAN)
- Wide Area Networks (WAN)
- Fiber-to-the-Desk (FTTD)
- Premise cabling and field termination
- Network repair and restoration
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | 95-201-52-SP |
| Connector Type | ST |
| Fiber Mode | Single Mode |
| Average Insertion Loss | 0.2 dB |
| Maximum Insertion Loss | 0.75 dB |
| Cable Compatibility | 3mm, 2mm, 900µm |
| Termination Method | Anaerobic Adhesive |
Frequently Asked Questions
Does this connector require a heat oven?
No, it uses an anaerobic adhesive process, which eliminates the need for curing lamps or heat ovens for faster field installation.
What cable sizes are supported?
The connector includes boots for 3mm, 2mm, and 900µm cable diameters.
Is this for single mode or multimode fiber?
This model is specifically designed for single mode fiber optic applications.
What is the average insertion loss?
The average insertion loss is 0.2dB.
What is the maximum insertion loss?
The maximum insertion loss is rated at 0.75dB.
