Overview
The SPC964 Fiber Test Jumpers Kit is a specialized field solution designed for testing Evolv terminals equipped with Pushlok technology. This comprehensive kit provides technicians with the necessary components to perform fiber tracing, continuity testing, and fault location in hardened connectivity environments.
The kit includes high-quality test jumpers featuring factory-terminated, environmentally sealed, and hardened connectors, ensuring reliable performance in demanding field conditions. Also included is a versatile port cleaner with 180-degree rotation, compatible with Pushlok, OptiTap, and Evolv HC terminals, alongside a visual fault locator for identifying breaks or poor connections.
Key Features
-
Hardened Connectivity
Features factory-terminated, environmentally sealed connectors for durability in harsh environments. -
Comprehensive Testing
Includes specialized test jumpers for both SC/UPC and SC/APC applications to accommodate various network requirements. -
Integrated VFL
Includes a visual fault locator for effective fiber tracing and troubleshooting. -
Rotatable Port Cleaner
The cleaning tool offers 180-degree rotation for compatibility with multiple connector types including Pushlok and OptiTap. -
Insertion Loss Performance
Engineered with a 0.4 dB insertion loss for accurate testing results. -
Reflectance Specification
Features a reflectance rating of ≤ -65 dB for high-precision optical measurement. -
Durable Storage

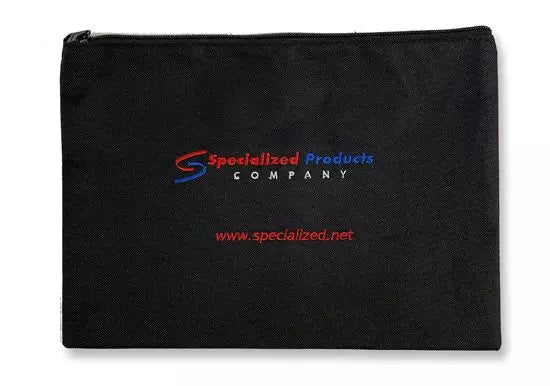

Comes with an 8"x12" water-resistant polyester zipper bag for organized field transport.
Applications
- Testing of Evolv terminals with Pushlok technology
- Fiber optic cable continuity testing
- Fiber tracing and routing
- Locating breakpoints and poor connections

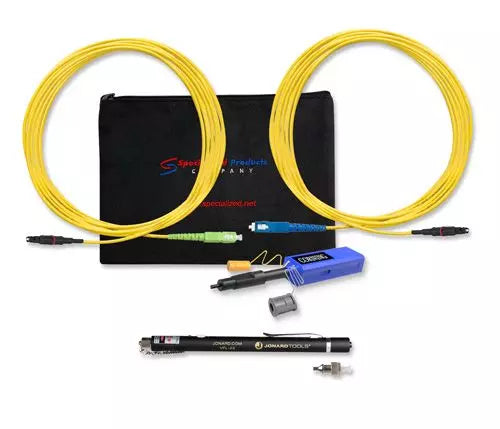

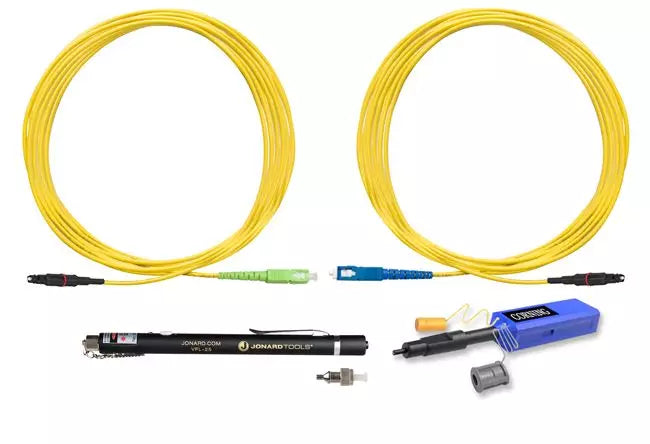

Package Contents
- Visual Fault Locator (VFL) for 2.5mm & 1.25mm connectors
- Zipper Tool Bag (8"x12")
- Pushlok Port Cleaner
- FTTx Test Jumper 1F Pushlok to SC/APC (3m)
- FTTx Test Jumper 1F Pushlok to SC/UPC (3m)
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | SPC964 |
| Insertion Loss | 0.4 dB |
| Reflectance | ≤ -65 dB |
| Connector Compatibility | Pushlok, OptiTap, SC/UPC, SC/APC |
| Bag Dimensions | 8" x 12" |
| Bag Material | Water-resistant polyester |
Frequently Asked Questions
What connector types is the cleaning tool compatible with?
The included cleaning tool is compatible with Pushlok, OptiTap, and Evolv HC hardened connectivity terminals.
What is the purpose of the included VFL?
The visual fault locator is used for fiber tracing, continuity testing, and locating breakpoints or poor connections in fiber optic cables.
Are the test jumpers hardened?
Yes, the jumpers are factory-terminated with environmentally sealed, hardened connectors.
What size connectors does the VFL support?
The VFL is compatible with both 2.5mm and 1.25mm connectors.
What is the length of the included test jumpers?
Both the Pushlok to SC/APC and Pushlok to SC/UPC jumpers are 3 meters in length.
