Overview

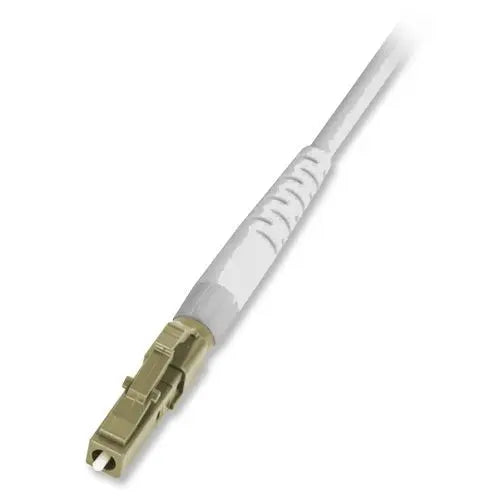

The Corning FuseLite® 2 Field-Installable LC 2mm Multimode Splice-On Connectors offer a professional solution for reliable fusion splicing connectivity in diverse networking environments. Designed for efficiency, these connectors feature an integrated splice protection mechanism within the connector body, eliminating the need for separate splice trays.
Engineered for high-performance, each 62.5µm OM1 connector comes factory-polished to deliver consistent optical performance. They are particularly well-suited for reflectance-sensitive applications where stability is critical. With a wide operating temperature range, they maintain integrity in demanding conditions, making them a robust choice for field technicians.
Key Features
-
Integrated Splice Protection
Splice protection is housed directly within the connector body, which reduces installation footprint and eliminates the requirement for external splice trays. -
Factory-Polished End Face
Reduces the need for field polishing, ensuring consistent, high-quality optical results for every termination. -
Broad Operating Temperature
Rated for operation from -40°F to 167°F (-40°C to +75°C), ensuring stability in varying climate conditions. -
Low Insertion Loss
Features a 0.3 dB maximum and 0.2 dB typical insertion loss to maintain high signal integrity across the fiber network. -
Reflectance Sensitivity
Optimized for applications where minimizing back-reflection is critical for system performance. -
User-Friendly Design
Improved ergonomics and design make these connectors faster and easier to install compared to standard splice-on alternatives.
Applications
- Fiber optic network maintenance
- Reflectance-sensitive optical networks
- Field termination of 2mm OM1 multimode cables
- Data center cabling upgrades
Package Contents
- 25 x FuseLite 2 LC 2mm OM1 Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Connector Type | LC |
| Fiber Type | OM1 (62.5µm) |
| Cable Size | 2mm |
| Insertion Loss | 0.3 dB (Max), 0.2 dB (Typical) |
| Operating Temperature | -40°C to +75°C (-40°F to 167°F) |
| Housing Material | Composite |
| Compliance | RoHS 2011/65/EU |
Frequently Asked Questions
Are these connectors reusable?
These are field-installable, permanent fusion splice-on connectors designed for a single installation.
Do I need specialized equipment to install these?
Yes, they are designed to be used with compatible fusion splicers and specific handler tools.
What does the package contain?
The package includes 25 individual LC 2mm OM1 connectors.
Can these be used in outdoor environments?
Yes, the wide operating temperature range allows for use in various environments, provided they are properly protected within an enclosure.
Are these compatible with standard 2mm fiber?
Yes, they are specifically engineered for 2mm OM1 multimode fiber cables.
