Overview

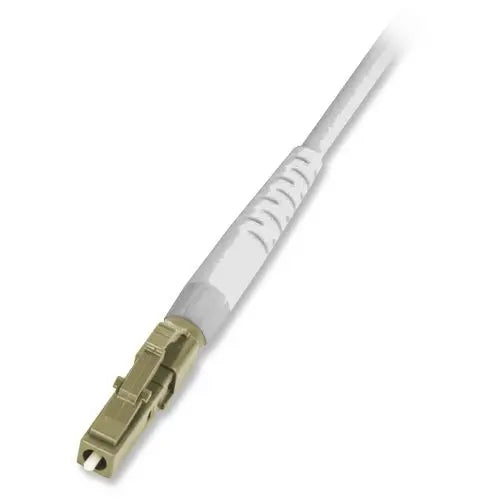

The Corning FL2-LC-2MM-OM1-25-TAA FuseLite® 2 Field-Installable LC 2mm Multimode Splice-On Connectors are designed to provide efficient and reliable fusion splicing connectivity. These TAA-compliant connectors are ideal for network environments requiring high precision and reflectance-sensitive termination.
Each connector features a factory-polished end face and integrates splice protection directly within the connector body, eliminating the need for additional splice trays. This design streamlines the installation process, offering a quicker and more user-friendly alternative to standard splice-on connectors while maintaining consistent optical performance across a wide operating temperature range.
Key Features
-
Fusion Splicing Technology
Ensures high-strength, low-loss permanent connections suitable for mission-critical network infrastructure. -
Integrated Splice Protection
Housing design incorporates the splice point, reducing footprint and removing the requirement for bulky splice trays. -
Factory-Polished End Face
Provides consistent, repeatable optical quality while simplifying field termination time. -
Wide Operating Temperature
Rated for performance between -40°F and 167°F (-40°C to +75°C) for diverse environmental stability. -
TAA Compliant
Meets Trade Agreements Act requirements for government and federally funded projects. -
Universal Compatibility
Compatible with leading fusion splicers available in the current market.
Applications
- Local Area Networks (LAN)
- Wide Area Networks (WAN)
- Data Center Interconnects
- Reflectance-sensitive optical networks
- Field termination for premise cabling
Package Contents
- 25 x FuseLite2 LC 2mm OM1 Multimode Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | FL2LC2MMOM125TAA |
| Fiber Type | OM1 Multimode |
| Core Size | 62.5µm |
| Insertion Loss (Typical) | 0.2 dB |
| Insertion Loss (Maximum) | 0.3 dB |
| Operating Temperature | -40°C to +75°C |
| Compliance | TAA Compliant, RoHS 2011/65/EU |
Frequently Asked Questions
Are these connectors TAA compliant?
Yes, this specific model is TAA compliant.
Do I need external splice trays?
No, the FuseLite2 design features integrated splice protection within the connector body.
What is the fiber type?
These are 62.5µm OM1 multimode connectors.
Are they compatible with my fusion splicer?
These connectors are designed to be compatible with most leading fusion splicers on the market.
How many connectors are included in the package?
Each package contains 25 connectors.
