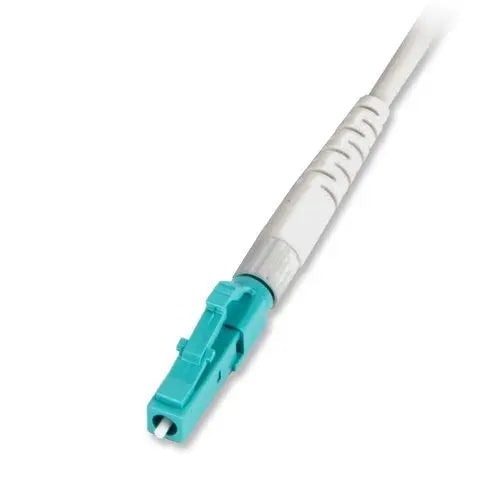

Corning FL2-LC-2MM-OM4-25 FuseLite2 LC 2mm OM4 Connector, 25/Pk

Overview

The Corning FuseLite® 2 field-installable LC 2mm multimode connectors are designed to provide rapid, reliable fusion splicing connectivity for high-performance networks. These connectors simplify the installation process by integrating splice protection directly within the connector body, eliminating the need for separate splice trays or traditional splice enclosures.

Optimized for 50μm OM4 multimode fiber, these connectors feature a factory-polished end face to ensure consistent optical performance. They are suitable for a wide range of operating environments, maintaining structural and optical integrity across a temperature range of -40°F to 167°F (-40°C to +75°C).

Key Features

• Fusion Splice Integration
  Splice protection is built directly into the connector body, reducing installation time and eliminating the need for bulky external splice trays.
• Factory-Polished End Face
  Ensures high-quality, repeatable signal integrity immediately upon installation without field polishing.
• Broad Operating Temperature
  Engineered to perform reliably in demanding environments ranging from -40°C to +75°C.
• Reflectance-Sensitive Optimization
  Designed for applications where low back-reflection is critical for network stability.
• Field-Installable Design
  More user-friendly and quicker to terminate than standard field-installable splice-on connectors.
• RoHS Compliant
  Free of hazardous substances in accordance with 2011/65/EU standards for environmental safety.

Applications

• Data center fiber infrastructure
• Reflectance-sensitive optical networks
• Field-termination of 2mm multimode cabling
• High-density connectivity requirements

Package Contents

• 25 x FuseLite2 LC 2mm OM4 Connectors

Compatibility

• FL2-HLD-CON-SC-LC-S-A

Technical Specifications

Frequently Asked Questions

What type of fiber are these connectors compatible with?
These are OM4 50μm multimode connectors specifically designed for 2mm cabling.

Are splice trays required for this connector?
No, the splice protection is integrated within the connector body itself.

What is the maximum insertion loss for these connectors?
The maximum insertion loss is 0.3 dB.

Are these connectors suitable for outdoor temperature extremes?
Yes, they are rated for operation between -40°C and +75°C.

What handler is required for these connectors?
These use the FL2-HLD-CON-SC-LC-S-A handler for SC and LC types.
