Overview

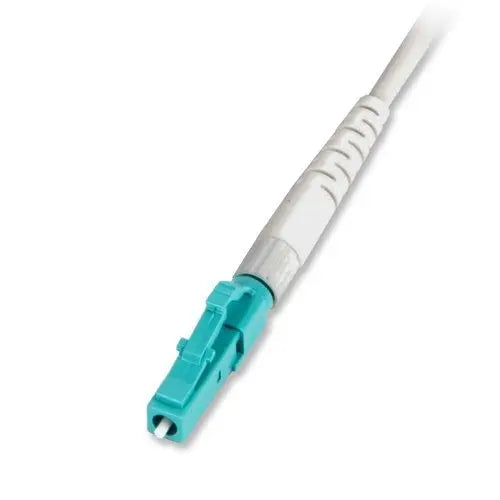

The Corning FuseLite® 2 Field-Installable LC 2mm Multimode Splice-On Connectors provide reliable fusion splicing connectivity for various network environments. These TAA-compliant connectors are engineered to deliver consistent optical performance, simplifying the termination process in the field.
Designed with internal splice protection within the connector body, these connectors eliminate the need for separate splice trays. They feature a factory-polished end face for quick, dependable termination and are optimized for reflectance-sensitive applications. The connectors are RoHS 2011/65/EU compliant and compatible with most industry-standard fusion splicers.
Key Features
-
Factory-Polished End Face
Ensures high-quality, repeatable optical performance right out of the package. -
Integrated Splice Protection
Splice protection is housed within the connector body, removing the need for external splice trays. -
TAA Compliant
Meets Trade Agreements Act requirements for government and municipal projects. -
User-Friendly Design
Optimized for faster and easier installation compared to standard field-installable connectors. -
Wide Operating Temperature
Maintains performance consistency in environments ranging from -40°F to 167°F (-40°C to +75°C). -
RoHS Compliant
Manufactured free of hazardous substances per environmental standards.
Applications
- Fiber network maintenance and repair
- Reflectance-sensitive optical networks
- Data center cable management
- Premise distribution networks
Package Contents
- 25 x FuseLite2 LC 2mm OM4 Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | FL2LC2MMOM425TAA |
| Connector Type | LC |
| Fiber Type | OM4 Multimode |
| Core Size | 50µm |
| Cable Compatibility | 2mm |
| Insertion Loss (Typical) | 0.2 dB |
| Insertion Loss (Maximum) | 0.3 dB |
| Operating Temperature | -40°C to +75°C |
| Housing Material | AQUA Composite |
| Quantity per Package | 25 |
| Compliance | TAA, RoHS 2011/65/EU |
Frequently Asked Questions
Are these connectors reusable?
No, these are field-installable, single-use splice-on connectors.
Do I need a special tool for installation?
Yes, they are designed for use with compatible fusion splicers and specific FuseLite2 handlers.
Are these compatible with non-Corning fusion splicers?
They are designed for compatibility with leading fusion splicers in the market, though checking your splicer manual for compatibility is recommended.
Are splice trays required?
No, because the splice protection is integrated within the connector body.
What does TAA compliant mean?
It indicates the product meets the requirements of the Trade Agreements Act, making it suitable for US government procurement.
