Overview

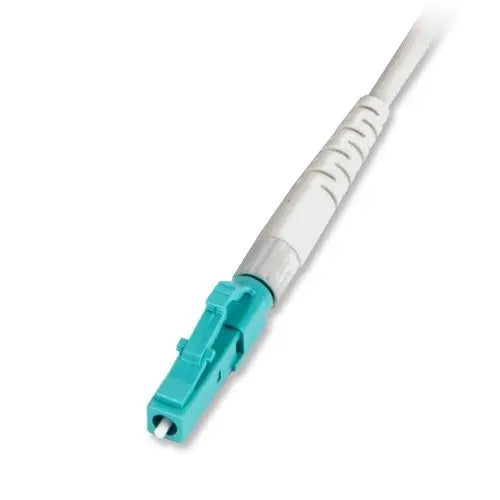

The Corning FuseLite® 2 Field-Installable LC 2mm Multimode Splice-On Connectors are designed to provide efficient and reliable fusion splicing connectivity for high-density networks. Engineered for ease of use, these connectors feature an integrated splice protection design within the connector body, eliminating the need for separate splice trays and streamlining the installation process.
Ideal for reflectance-sensitive environments, these OM4 connectors are factory-polished and optimized for consistent performance across varied operating conditions. Constructed with an aqua composite housing, they provide durable protection for the termination point. These connectors are RoHS 2011/65/EU compliant and compatible with most industry-standard fusion splicers.
Key Features
-
Integrated Splice Protection
Splice protection is housed directly within the connector body for a streamlined footprint. -
Fusion Splicing Technology
Ensures permanent, low-loss optical connectivity suitable for high-performance networks. -
Factory-Polished End Face
Minimizes field variability and ensures consistent signal integrity. -
Low Insertion Loss
Rated at 0.3 dB maximum and 0.2 dB typical for reliable optical throughput. -
Wide Operating Temperature
Tested for consistent performance from -40°F to 167°F (-40°C to +75°C). -
Easy Termination
Faster and more user-friendly installation compared to standard legacy splice-on designs. -
No Splice Tray Required
Reduces hardware requirements and saves space in patch panels or enclosures.
Applications
- Data center cabling
- Reflectance-sensitive optical networks
- Local Area Network (LAN) infrastructure
- High-density fiber management systems
Package Contents
- 6 x FuseLite2 LC 2mm OM4 Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | FL2-LC-2MM-OM4-6 |
| Fiber Type | 50μm OM4 Multimode |
| Connector Type | LC |
| Cable Size | 2mm |
| Insertion Loss | 0.3 dB (Max), 0.2 dB (Typical) |
| Operating Temperature | -40°C to +75°C |
| Housing Material | Aqua Composite |
| Compliance | RoHS 2011/65/EU |
Frequently Asked Questions
Do I need a special splice tray for these connectors?
No, the connectors are designed with integrated splice protection within the body, removing the need for external splice trays.
Are these compatible with standard fusion splicers?
Yes, they are compatible with leading fusion splicers on the market, though specific handlers may be required.
What is the fiber type?
These are 50μm OM4 multimode connectors.
What does the package contain?
Each package contains 6 connector units.
Are they RoHS compliant?
Yes, they are free of hazardous substances per RoHS 2011/65/EU.
