Overview

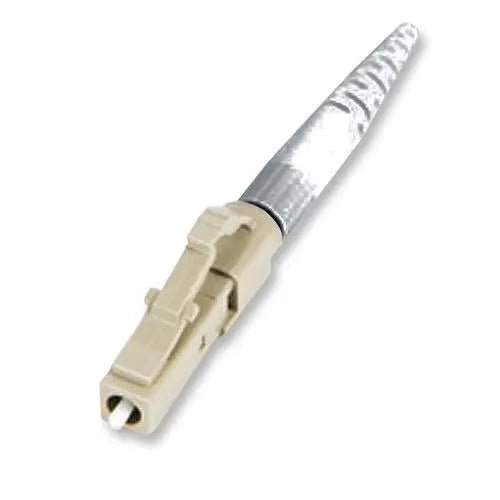

The Corning FL2-LC-900-OM1-6 FuseLite® 2 Field-Installable LC 900µm Multimode Splice-On Connectors provide a reliable fusion splicing connectivity solution for fiber optic networks. Designed for high-performance requirements, these connectors feature a factory-polished end face to ensure consistent signal integrity.
These connectors integrate splice protection directly into the connector body, eliminating the need for separate splice trays and simplifying installation in confined environments. Engineered for efficiency, they are compatible with leading fusion splicers and support rapid, reliable field termination.
Key Features
-
Fusion Splice-On Design
Direct fusion splicing for permanent, low-loss connections in the field. -
Integrated Splice Protection
Splice protection is housed within the connector body, removing the need for external splice trays. -
Factory-Polished End Face
Reduces field labor and ensures consistent high-quality optical performance. -
OM1 Multimode Support
Optimized for 62.5µm OM1 multimode fiber environments. -
Broad Thermal Stability
Maintains optical performance from -40°F to 167°F (-40°C to +75°C). -
RoHS Compliant
Manufactured free of hazardous substances per 2011/65/EU.
Applications
- Reflectance-sensitive fiber optic networks
- Field installations requiring rapid termination
- Building and data center fiber interconnects
Package Contents
- 6 x FuseLite2 LC 900µm OM1 Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | FL2-LC-900-OM1-6 |
| Connector Type | LC |
| Fiber Type | Multimode (OM1) |
| Fiber Size | 62.5µm |
| Buffer Size | 900µm |
| Typical Insertion Loss | 0.2 dB |
| Maximum Insertion Loss | 0.3 dB |
| Operating Temperature | -40°C to +75°C |
| Housing Material | Beige Composite |
Frequently Asked Questions
Are these connectors suitable for all fiber types?
No, these are specifically designed for 62.5µm OM1 multimode fiber applications.
Do I need a separate splice tray?
No, the FuseLite2 design incorporates splice protection within the connector body, eliminating the need for separate trays.
What is the typical insertion loss for this connector?
The typical insertion loss is 0.2 dB, with a maximum specification of 0.3 dB.
Can these be used in extreme temperatures?
Yes, they are rated for operation between -40°C and +75°C.
Is the housing color significant?
The beige housing denotes the OM1 multimode specification.
