Overview

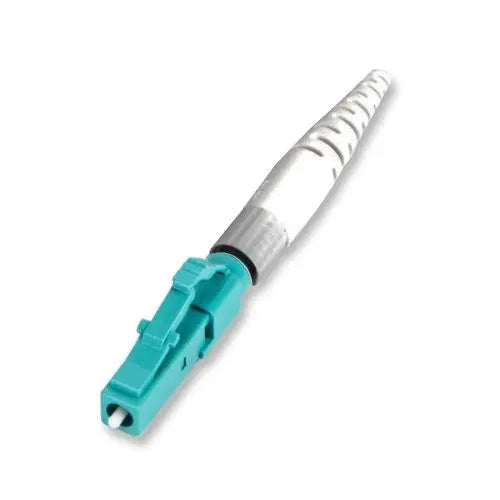

The Corning FuseLite® 2 Field-Installable LC 900μm Multimode Splice-On Connectors provide a reliable fusion splicing connectivity solution for enterprise and data center networks. By terminating the fiber directly onto a factory-polished connector, these units eliminate the need for mechanical splices or splice trays, ensuring superior signal integrity.
These connectors are designed for rapid field installation and offer consistent optical performance across demanding temperature ranges. With an aqua-colored composite housing, they are optimized for OM4 multimode applications and comply with RoHS 2011/65/EU hazardous substance standards.
Key Features
-
Fusion Splicing Connectivity
Ensures permanent, low-loss connections by fusing the fiber directly to the connector ferrule. -
Factory-Polished End Face
Provides consistent, high-quality optical performance out of the box, reducing field polishing time. -
Integrated Protection
Splice protection is housed within the connector body, eliminating the need for additional splice trays. -
Rapid Installation
Designed for quicker and easier deployment compared to standard field-installable splice-on connectors. -
Broad Operating Temperature
Reliable performance in environments ranging from -40°F to 167°F (-40°C to +75°C). -
OM4 Multimode Optimized
Engineered for high-bandwidth 50μm OM4 multimode fiber infrastructure.
Applications
- Enterprise LAN/WAN networks
- Data center fiber infrastructure
- Reflectance-sensitive fiber installations
- Field fiber termination and repair
Package Contents
- 25 x FuseLite® 2 LC 900μm OM4 Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | FL2-LC-900-OM425 |
| Connector Type | LC |
| Fiber Type | 50μm OM4 Multimode |
| Fiber Size | 900μm |
| Insertion Loss (Max) | 0.3 dB |
| Insertion Loss (Typical) | 0.2 dB |
| Operating Temperature | -40°C to +75°C (-40°F to 167°F) |
| Housing Material | Composite |
| Housing Color | Aqua |
| Standards Compliance | RoHS 2011/65/EU |
Frequently Asked Questions
Are splice trays required for these connectors?
No, these connectors are designed with integrated splice protection, eliminating the need for additional splice trays.
What is the maximum insertion loss for these connectors?
The maximum insertion loss is 0.3 dB.
Are these connectors suitable for OM4 fiber?
Yes, these are specifically engineered for 50μm OM4 multimode fiber.
What is the operating temperature range?
They are rated for operation between -40°F and 167°F (-40°C to +75°C).
How many connectors are in each package?
Each package contains 25 connectors.
