Overview

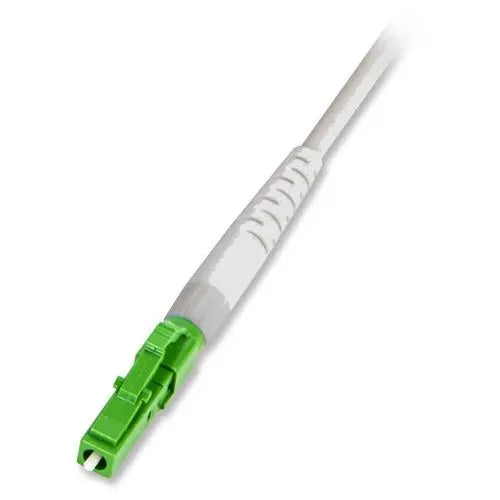

The Corning FuseLite® 2 Field-Installable LC/APC Connector is a precision-engineered solution designed for rapid, reliable fusion splicing in single-mode fiber networks. This connector features an integrated splice protection mechanism within the connector body, eliminating the requirement for external splice trays and simplifying field deployments.
Engineered for high-performance optical connectivity, each connector is factory-polished to provide consistent results. These connectors are specifically designed for TAA compliance, making them suitable for government and institutional project requirements. They are intended for use in environments where reliability and reflectance management are critical, supporting stable performance across an operating temperature range of -40°C to +75°C (-40°F to 167°F).
Key Features
-
Integrated Splice Protection
Features splice protection housed directly within the connector body, which reduces physical space requirements and removes the need for separate splice trays. -
Factory-Polished End Face
Utilizes a factory-polished connector end face, ensuring consistent, high-quality optical connections every time. -
Low Insertion Loss
Delivers an insertion loss of 0.3 dB maximum (0.2 dB typical), providing efficient signal transmission for demanding fiber networks. -
TAA Compliant
Fully meets Trade Agreements Act requirements, ensuring suitability for government-funded infrastructure and projects. -
Broad Temperature Range
Rated for operation between -40°C and +75°C, allowing for stable performance in diverse field environments. -
RoHS Compliant
Manufactured without hazardous substances, meeting the RoHS 2011/65/EU standard for environmentally safe electronics. -
User-Friendly Design
Optimized for quicker, easier installation compared to standard field-installable splice-on connectors, lowering total labor time.
Applications
- Single-mode fiber network installation
- Reflectance-sensitive optical applications
- Government and TAA-restricted projects
- Field repair and fiber network restoration
- Data center and campus fiber connectivity
Package Contents
- 25 x FuseLite2 LC/APC 2mm Single Mode Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Part Number | 745X088 |
| Model | FL2LCA2MMSM25TAA |
| Connector Type | LC/APC |
| Fiber Type | Single Mode (OS2) |
| Cable Size | 2mm |
| Insertion Loss | 0.3 dB (Max), 0.2 dB (Typical) |
| Operating Temperature | -40°C to +75°C |
| Standards | RoHS 2011/65/EU |
| Quantity | 25 per pack |
Frequently Asked Questions
Are these connectors TAA compliant?
Yes, this specific model (FL2-LCA-2MM-SM-25-TAA) is fully TAA compliant.
Do I need a separate splice tray for these connectors?
No, these connectors feature built-in splice protection within the connector body, eliminating the need for splice trays.
What is the typical insertion loss for this connector?
The typical insertion loss is 0.2 dB, with a maximum specification of 0.3 dB.
Are these compatible with standard fusion splicers?
Yes, the FuseLite2 series is designed to be compatible with leading fusion splicers currently used in the industry.
What is the cable compatibility for this connector?
This specific part number is designed for 2mm single-mode fiber cables.
