Overview

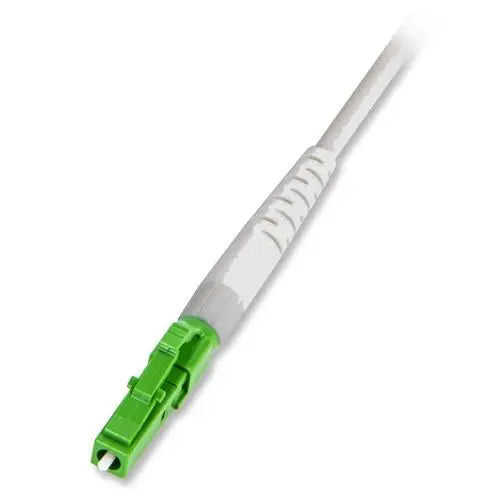

The Corning FuseLite® 2 field-installable LC/APC single-mode connectors provide a reliable fusion splicing solution for optical networks. Designed with integrated splice protection within the connector body, these connectors eliminate the need for separate splice trays, simplifying the installation process in reflectance-sensitive environments.
Engineered for efficiency, these connectors feature a factory-polished end face to ensure consistent optical performance. They are suitable for various field conditions, maintaining integrity across a wide operating temperature range from -40°F to 167°F.
Key Features
-
Integrated Splice Protection
Splice protection is housed within the connector body, removing the requirement for additional splice trays. -
Factory-Polished End Face
Ensures consistent, high-quality optical performance and minimizes manual polishing time in the field. -
LC/APC Performance
Optimized for reflectance-sensitive applications, providing superior signal integrity. -
Wide Operating Temperature
Tested to maintain performance from -40°F to +167°F (-40°C to +75°C). -
Quick Installation
Designed for a faster, more user-friendly installation compared to standard splice-on connector designs. -
RoHS Compliant
Manufactured to be free of hazardous substances per 2011/65/EU standards.
Applications
- Reflectance-sensitive optical networks
- Field termination of single-mode fiber
- General fiber optic network maintenance
Package Contents
- 6 x FuseLite2 LC/APC 2mm Single Mode Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | FL2-LCA-2MM-SM-6 |
| Connector Type | LC/APC |
| Fiber Mode | Single Mode (OS2) |
| Cable Diameter | 2mm |
| Insertion Loss (Typical) | 0.2 dB |
| Insertion Loss (Max) | 0.3 dB |
| Operating Temperature | -40°C to +75°C |
| Compliance | RoHS 2011/65/EU |
Frequently Asked Questions
Are splice trays required for these connectors?
No, the FuseLite2 design features internal splice protection, removing the need for splice trays.
What is the typical insertion loss?
The typical insertion loss is 0.2 dB, with a maximum of 0.3 dB.
Are these connectors compatible with existing fusion splicers?
Yes, they are designed to be compatible with leading fusion splicers currently on the market.
What does the kit include?
Each package contains 6 connector units.
What fiber type is supported?
These are single-mode (OS2) connectors.
