Overview

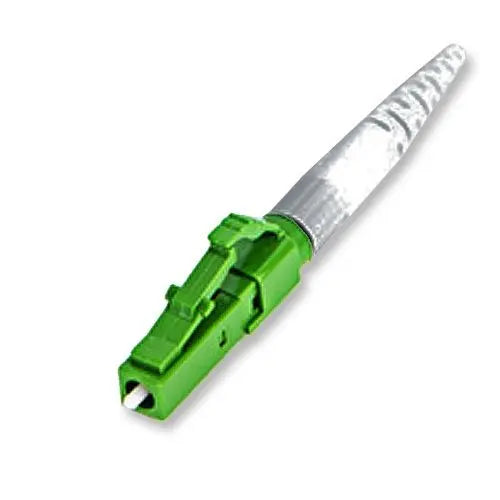

The Corning FuseLite® 2 Field-Installable LC/APC 900µm Single Mode Splice-On Connectors provide efficient, reliable fusion splicing connectivity across a variety of network environments. Designed to simplify field termination, these connectors feature integrated splice protection within the connector body, eliminating the requirement for external splice trays.
These connectors feature a factory-polished end face to ensure consistent optical performance. Engineered for ease of use, the FuseLite2 system is designed for quicker installation than traditional splice-on methods, making them ideal for reflectance-sensitive applications in demanding field conditions.
Key Features
-
Field-Installable Design
Allows for direct fusion splicing in the field, reducing the need for lengthy cable management and slack storage. -
Integrated Splice Protection
The splice point is protected within the connector body, removing the requirement for additional splice trays. -
Factory-Polished End Face
Provides high-quality optical performance and ensures consistent results immediately upon installation. -
LC/APC Performance
Optimized for reflectance-sensitive applications where minimizing back reflection is critical. -
RoHS Compliant
Free of hazardous substances per 2011/65/EU, meeting modern environmental safety standards. -
Wide Operating Temperature
Ensures stable optical transmission in extreme environments ranging from -40°F to 167°F.
Applications
- FTTH and Enterprise Networks
- Reflectance-sensitive optical links
- Field termination where space for splice trays is limited
- Repair and restoration of fiber optic lines
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | FL2-LCA-900-SM-6 |
| Connector Type | LC/APC |
| Fiber Type | Single Mode (OS2) |
| Fiber Size | 900µm |
| Typical Insertion Loss | 0.2 dB |
| Maximum Insertion Loss | 0.3 dB |
| Operating Temperature | -40°C to +75°C (-40°F to 167°F) |
| Compliance | RoHS 2011/65/EU |
| Package Quantity | 6 per pack |
Frequently Asked Questions
What does the LC/APC designation mean?
It indicates an LC connector with an Angled Physical Contact polish, which is used to significantly reduce back-reflection in sensitive optical networks.
Are these connectors compatible with standard fusion splicers?
Yes, they are compatible with most leading industry fusion splicers, though specific handler tools may be required.
Do I need a separate splice tray for these?
No, these are designed to provide internal splice protection within the connector body itself.
Can these be used for outdoor environments?
They are rated for operation between -40°C and 75°C, making them suitable for many varied field environments.
Are these field-installable?
Yes, these are specifically engineered as field-installable connectors to speed up installation and repair processes.
