Overview

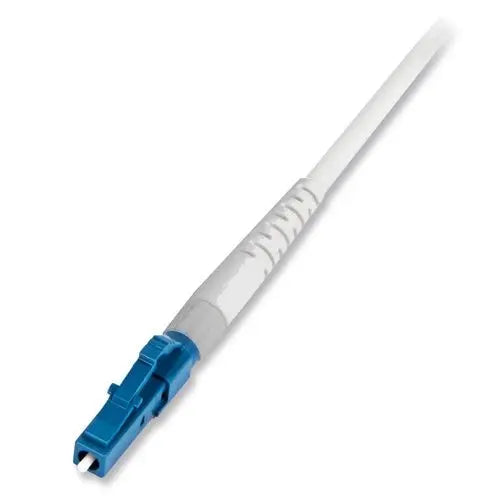

The Corning FuseLite® 2 Field-Installable LC/UPC 2mm Single Mode Splice-On Connectors provide a reliable fusion splicing solution for optical networks. These connectors are TAA compliant and designed to streamline the termination process by incorporating splice protection directly within the connector body, eliminating the need for separate splice trays.
Designed for reflectance-sensitive applications, these connectors feature a factory-polished end face for consistent signal integrity. Their user-friendly design allows for quicker installation in the field while maintaining stability across diverse environments. These connectors are RoHS compliant and compatible with most industry-standard fusion splicers.
Key Features
-
Integrated Splice Protection
The splice point is protected within the connector body, reducing installation time by removing the need for splice trays. -
Field-Installable
Enables rapid on-site termination, increasing deployment efficiency for fiber technicians. -
TAA Compliant
Meets Trade Agreements Act requirements for government and public sector projects. -
Factory-Polished End Face
Ensures consistent optical performance and reduces field polishing requirements. -
Operating Temperature Range
Provides reliable performance in environmental conditions ranging from -40°F to 167°F (-40°C to +75°C). -
RoHS Compliant
Manufactured without hazardous substances, supporting environmental safety standards.
Applications
- Optical network installation
- Reflectance-sensitive fiber connections
- Field termination projects
- Government and TAA-restricted infrastructure
Package Contents
- 25 x FuseLite2 LC/UPC 2mm SM Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Part Number | 745X080 |
| Model | FL2LCU2MMSM25TAA |
| Fiber Type | Single Mode (OS2) |
| Connector Type | LC/UPC |
| Insertion Loss | 0.2 dB (Typical), 0.3 dB (Max) |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
| Compliance | TAA Compliant, RoHS 2011/65/EU |
Frequently Asked Questions
Are these connectors TAA compliant?
Yes, the FL2-LCU-2MM-SM-25-TAA is TAA compliant.
Do I need a separate splice tray?
No, the splice protection is integrated within the connector body.
What is the typical insertion loss?
The typical insertion loss is 0.2 dB.
Is this connector suitable for outdoor temperatures?
Yes, it is rated for operation between -40°C and +75°C.
How many connectors come in a package?
Each package contains 25 connectors.
