Overview

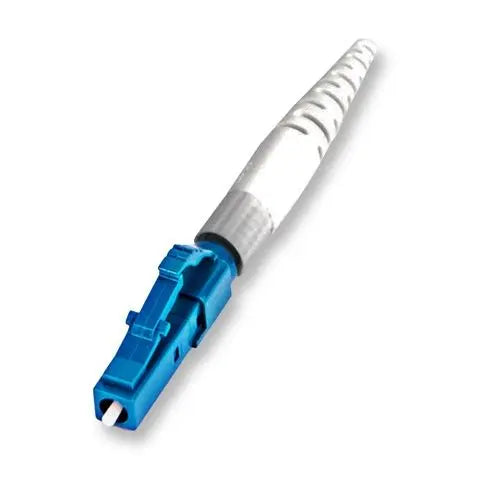

The Corning FuseLite 2 field-installable LC/UPC single-mode connectors are designed for reliable fusion splicing in a wide range of fiber optic network applications. By integrating the splice protection directly within the connector body, these connectors eliminate the need for external splice trays, streamlining the installation process.
These OS2 connectors feature a factory-polished end face to ensure consistent optical performance. Engineered for ease of use, they offer faster termination times compared to standard splice-on connector designs, providing an efficient solution for network operators and technicians working in reflectance-sensitive environments.
Key Features
-
Integrated Splice Protection
Splice protection is housed within the connector body, removing the requirement for additional splice trays. -
Factory-Polished End Face
Pre-polished termination ensures consistent signal quality and reduces on-site labor requirements. -
High Optical Performance
Features a 0.3 dB maximum and 0.2 dB typical insertion loss for reliable connectivity. -
Wide Operating Temperature
Tested for consistent performance in temperatures ranging from -40°F to 167°F (-40°C to +75°C). -
User-Friendly Design
More efficient and quicker to install than standard splice-on connector alternatives. -
RoHS Compliant
Manufactured free of hazardous substances in accordance with RoHS 2011/65/EU standards.
Applications
- Single-mode fiber network termination
- Reflectance-sensitive optical environments
- Field-based fiber optic installations
Package Contents
- 6 x FuseLite 2 LC/UPC 900µm Single Mode Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | FL2-LCU-900-SM-6 |
| Connector Type | LC/UPC |
| Fiber Type | Single Mode (OS2) |
| Fiber Diameter | 900µm |
| Typical Insertion Loss | 0.2 dB |
| Maximum Insertion Loss | 0.3 dB |
| Operating Temperature | -40°C to +75°C (-40°F to 167°F) |
| Housing Color | Blue |
| Compliance | RoHS 2011/65/EU |
Frequently Asked Questions
Are these connectors compatible with existing fusion splicers?
Yes, these connectors are designed to be compatible with leading fusion splicers currently available in the market.
Do I need a splice tray for these?
No, the FuseLite 2 connectors feature integrated splice protection within the connector body, eliminating the need for separate splice trays.
What is the fiber compatibility?
These are designed for 900µm single-mode fiber.
How many connectors are included in the package?
Each package contains 6 connectors.
