Overview

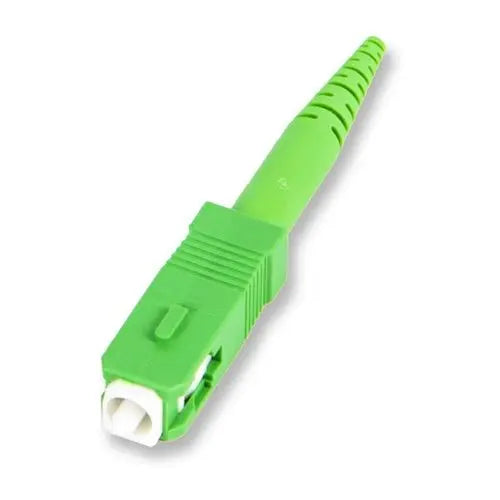

The Corning FuseLite® 2 Field-Installable SC/APC 900μm Single Mode Connectors are precision-engineered for field termination applications where fusion splicing is required. These connectors feature a factory-polished end face to ensure consistent optical performance, integrating splice protection directly within the connector body for a streamlined footprint that eliminates the need for bulky splice trays.
Designed for rapid deployment and network reliability, these connectors offer a significant advantage in installation speed and ease of use compared to standard field-installable alternatives. They are optimized for reflectance-sensitive environments and maintain operational stability across a broad temperature range of -40°F to 167°F (-40°C to +75°C).
Key Features
-
Fusion Splicing Connectivity
Provides a permanent, low-loss fusion splice connection, ensuring network integrity and minimal signal degradation. -
Integrated Splice Protection
The splice point is housed within the connector body, eliminating the requirement for external splice trays and reducing cabinet space needs. -
Factory-Polished End Face
Ensures high-quality, consistent optical performance immediately upon installation, removing the need for field polishing. -
SC/APC Compatibility
Optimized for reflectance-sensitive applications, providing the high return loss required for advanced optical networks. -
User-Friendly Design
More efficient installation process than standard connectors, reducing labor time for technicians in the field. -
Broad Thermal Stability
Guarantees consistent performance in environments ranging from -40°C to +75°C, suitable for outdoor and enterprise environments. -
RoHS Compliant
Manufactured without hazardous substances, meeting strict environmental safety standards.
Applications
- FTTH (Fiber to the Home) networks
- Enterprise fiber networks
- Reflectance-sensitive optical links
- Field restoration and emergency fiber repairs
Package Contents
- 25 x FuseLite® 2 SC/APC 900μm SM Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | FL2-SCA-900-SM25 |
| Connector Type | SC/APC |
| Fiber Type | Single Mode (OS2) |
| Fiber Size | 900μm |
| Insertion Loss (Max) | 0.3 dB |
| Insertion Loss (Typical) | 0.2 dB |
| Operating Temperature | -40°C to +75°C (-40°F to 167°F) |
| Housing Color | Green |
| Standards | RoHS 2011/65/EU |
| Package Quantity | 25 |
Frequently Asked Questions
Are these connectors compatible with all fusion splicers?
They are compatible with leading fusion splicers currently on the market using the appropriate holder.
Do these connectors require a splice tray?
No, these connectors are designed with integrated splice protection within the connector body, removing the need for additional trays.
What is the typical insertion loss?
The typical insertion loss is 0.2 dB, with a maximum of 0.3 dB.
Are these suitable for outdoor environments?
Yes, they are rated for temperatures ranging from -40°C to +75°C, making them suitable for most field environments.
Are these connectors pre-polished?
Yes, they feature a factory-polished end face to ensure high optical performance without field polishing.
