Overview

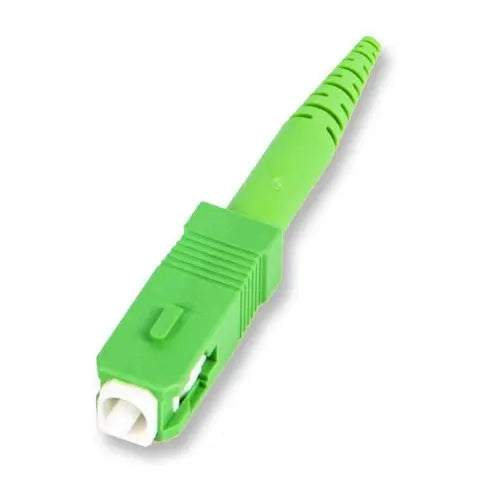

The Corning FuseLite® 2 Field-Installable SC/APC 900µm Single Mode Splice-On Connectors provide reliable fusion splicing connectivity for a wide variety of fiber optic networks. Designed for high performance, each connector features a factory-polished end face to ensure consistent optical transmission and reflectance sensitivity.
These connectors feature integrated splice protection within the connector body, eliminating the need for additional splice trays. They are engineered to be faster and more user-friendly than standard splice-on connectors, supporting efficient field installation across diverse operating environments ranging from -40°F to 167°F (-40°C to +75°C).
Key Features
-
Integrated Splice Protection
The splice point is contained within the connector body, which saves space and removes the need for external splice trays. -
Factory-Polished End Face
Ensures consistent, high-quality optical performance and eliminates the need for field polishing. -
Wide Operating Temperature
Rated for performance between -40°C and +75°C, allowing for deployment in extreme environments. -
OS2 Single Mode Compatibility
Optimized for long-distance, high-bandwidth single mode fiber applications. -
RoHS Compliant
Constructed to meet hazardous substance restrictions (2011/65/EU) for safe environmental integration. -
Simplified Installation
Designed for quicker and easier termination compared to traditional splice-on connectors.
Applications
- FTTH (Fiber to the Home) networks
- Enterprise LAN/WAN environments
- Reflectance-sensitive optical networks
- Field termination and repair
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | FL2-SCA-900-SM-6 |
| Connector Type | SC/APC |
| Fiber Type | Single Mode (OS2) |
| Fiber Size | 900µm |
| Insertion Loss | 0.3 dB (Max), 0.2 dB (Typical) |
| Operating Temperature | -40°C to +75°C |
| Package Quantity | 6 per Pack |
Frequently Asked Questions
Are these connectors reusable?
These are field-installable, permanent splice-on connectors designed for single-use termination.
Do I need a specific fusion splicer?
These connectors are compatible with most industry-standard fusion splicers; please refer to your splicer's user guide for specific holder requirements.
Are splice trays required for this installation?
No, the FuseLite2 design features internal splice protection, removing the need for external splice trays.
What is the fiber type compatibility?
These connectors are designed specifically for OS2 single mode fiber.
Are these connectors RoHS compliant?
Yes, they are free of hazardous substances per RoHS 2011/65/EU standards.
