Overview

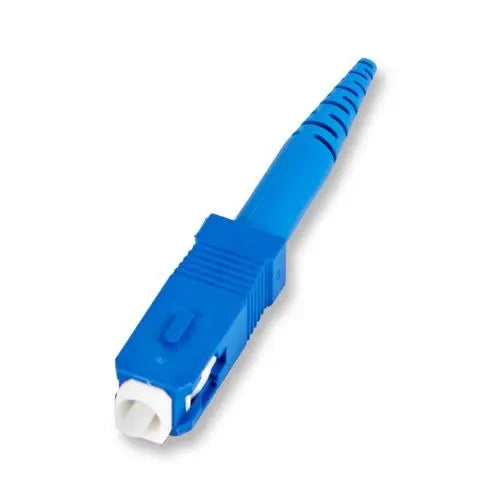

The Corning FuseLite® 2 Field-Installable SC/UPC 900µm Single Mode Splice-On Connectors provide a reliable fusion-spliced termination for fiber optic networks. These connectors feature a factory-polished end face and are engineered with internal splice protection within the connector body, eliminating the need for separate splice trays. They are designed for consistent optical performance in reflectance-sensitive applications.
Engineered for speed and efficiency, these field-installable connectors offer a streamlined installation process suitable for various networking environments. They operate reliably across a wide temperature range, ensuring long-term connectivity in diverse conditions. The connectors utilize a standard blue composite housing and are fully compliant with RoHS standards.
Key Features
-
Fusion Splicing Connectivity
Provides a high-quality, permanent connection using standard fusion splicing methods for enhanced signal integrity. -
Integrated Splice Protection
Splice protection is housed within the connector body, which reduces assembly time and removes the requirement for external splice trays. -
Factory-Polished End Face
Features a pre-polished end face for reliable optical performance and reduced installation time. -
Temperature Resilience
Maintains consistent operation in temperatures ranging from -40°F to 167°F (-40°C to +75°C), making it suitable for harsh environments. -
Low Insertion Loss
Delivers a 0.3 dB maximum and 0.2 dB typical insertion loss to ensure high-performance signal transmission. -
Reflectance Sensitivity
Ideally designed for networks sensitive to back-reflection, ensuring stable system performance. -
RoHS Compliance
Constructed free of hazardous substances as defined by EU directive 2011/65/EU, meeting global environmental standards.
Applications
- Data Center Networks
- Reflectance-Sensitive Optical Systems
- General Fiber Optic Field Termination
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | FL2-SCU-900-SM-6 |
| Connector Type | SC/UPC |
| Fiber Type | Single Mode (SM) |
| Fiber Size | 900µm |
| Insertion Loss | 0.3 dB (Max), 0.2 dB (Typical) |
| Operating Temperature | -40°C to +75°C (-40°F to 167°F) |
| Housing Color | Blue |
| Package Quantity | 6 per package |
| Environmental Compliance | RoHS 2011/65/EU |
Frequently Asked Questions
Are these connectors reusable?
No, these are field-installable, permanent fusion-splice connectors.
Do I need special equipment to install these?
Yes, these require a compatible fusion splicer and the appropriate Corning FuseLite2 connector holders.
Do I need a splice tray for this connector?
No, the design incorporates splice protection within the connector body itself, eliminating the need for a separate tray.
What kind of fiber is this connector designed for?
This specific model is designed for Single Mode (SM) 900µm buffered fiber.
Is the housing color significant?
Yes, the blue housing typically signifies a standard UPC polish for single-mode connectors.
