Overview

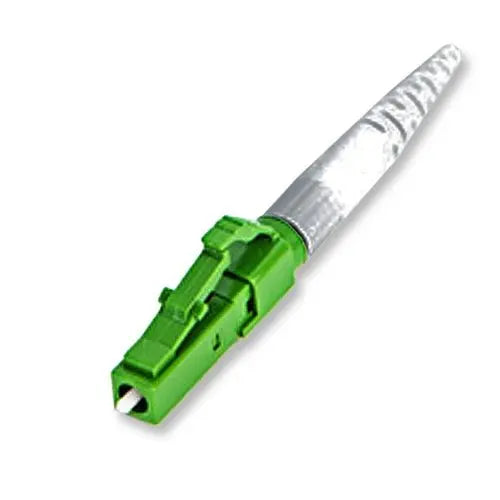

The Corning FuseLite® 2 Field-Installable LC/APC 900µm Single Mode Splice-On Connectors offer a high-performance, efficient solution for field-terminated fiber connections. Designed for single mode networks, these connectors feature a factory-polished end face that ensures consistent, reliable optical connectivity. The unique design integrates splice protection directly within the connector body, eliminating the need for bulky splice trays and streamlining the installation process.
These connectors are engineered for reflectance-sensitive applications, providing low insertion loss characteristics. They are compatible with a variety of fusion splicers, offering technicians a user-friendly and time-saving alternative to traditional splice-on methods in both data center and outside plant environments.
Key Features
-
Integrated Splice Protection
Splice protection is housed within the connector body, removing the requirement for additional splice trays. -
LC/APC Performance
Factory-polished LC/APC end face delivers consistent signal integrity for reflectance-sensitive networks. -
Low Insertion Loss
Features a 0.3 dB maximum and 0.2 dB typical insertion loss for reliable system power budgets. -
Rapid Installation
Streamlined design allows for quicker field termination compared to standard splice-on connectors. -
RoHS Compliant
Constructed from materials free of hazardous substances per the 2011/65/EU directive. -
Wide Operating Temperature
Designed for performance in environments ranging from -40°F to 167°F (-40°C to +75°C).
Applications
- Single mode fiber network installation
- Reflectance-sensitive fiber optic links
- Field termination where space is limited
- Data center fiber infrastructure
Package Contents
- 25 x Corning FuseLite2 LC/APC 900µm Single Mode Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | FL2-LCA-900-SM25 |
| Connector Type | LC/APC |
| Fiber Type | Single Mode (OS2) |
| Fiber Size | 900µm |
| Insertion Loss (Typical) | 0.2 dB |
| Insertion Loss (Max) | 0.3 dB |
| Operating Temperature | -40°C to +75°C |
| Housing Color | Green |
| Package Quantity | 25 |
Frequently Asked Questions
Are these compatible with all fusion splicers?
They are designed to be compatible with leading fusion splicers currently on the market.
Do I need external splice trays?
No, the FuseLite2 design integrates the splice protection within the connector body.
What is the typical insertion loss?
The typical insertion loss is 0.2 dB, with a maximum of 0.3 dB.
Is the fiber size specific?
Yes, these connectors are specifically for 900µm single mode fiber.
Are they RoHS compliant?
Yes, they are free of hazardous substances according to RoHS 2011/65/EU.
