Overview

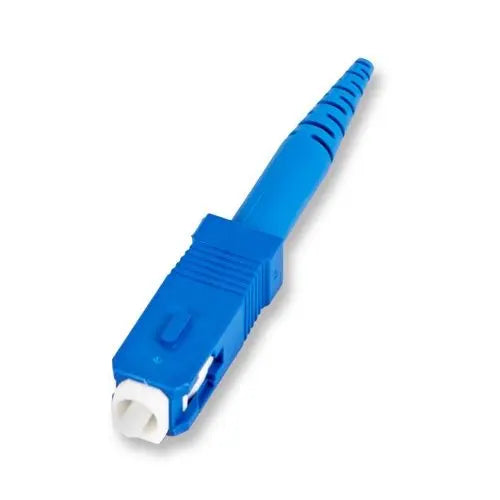

The Corning FuseLite® 2 Field-Installable SC/UPC 900µm Single Mode Splice-On Connectors are engineered to provide efficient and reliable fusion splicing connectivity. Designed for use in diverse network environments, these connectors feature a factory-polished end face to ensure consistent optical performance and reduce field installation variables.
These connectors integrate splice protection directly into the connector body, eliminating the need for additional splice trays. This streamlined design allows for quicker, more user-friendly installation compared to standard splice-on connectivity methods, making them ideal for reflectance-sensitive applications requiring high-precision terminations.
Key Features
-
Integrated Splice Protection
Splice protection is housed within the connector body, removing the requirement for extra splice trays. -
Factory-Polished End Face
Ensures consistent, high-quality optical signal transmission and reliable performance. -
Simplified Installation
Designed for faster, more user-friendly deployment compared to traditional splice-on connectors. -
High Optical Performance
Features a 0.3 dB maximum and 0.2 dB typical insertion loss for minimal signal attenuation. -
Wide Operating Temperature Range
Ensures stable performance in environments ranging from -40°F to 167°F (-40°C to +75°C). -
RoHS Compliant
Manufactured free of hazardous substances in accordance with 2011/65/EU standards.
Applications
- Reflectance-sensitive fiber optic networks
- Field-installable single mode terminations
- Network repair and maintenance
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | FL2-SCU-900-SM25 |
| Connector Type | SC/UPC |
| Fiber Type | Single Mode (OS2) |
| Fiber Size | 900µm |
| Insertion Loss (Max) | 0.3 dB |
| Insertion Loss (Typical) | 0.2 dB |
| Operating Temperature | -40°C to +75°C |
| Quantity | 25 per pack |
| Housing Color | Blue |
Frequently Asked Questions
Are these connectors compatible with existing fusion splicers?
Yes, they are designed to be compatible with leading fusion splicers currently on the market.
Do I need external splice trays for these?
No, the splice protection is integrated directly into the connector body.
What fiber type are these connectors for?
These are designed for 900µm single mode (OS2) fiber.
Are they compliant with environmental regulations?
Yes, they are free of hazardous substances in compliance with RoHS 2011/65/EU.
What is the typical insertion loss?
The typical insertion loss is 0.2 dB, with a maximum of 0.3 dB.
