Overview

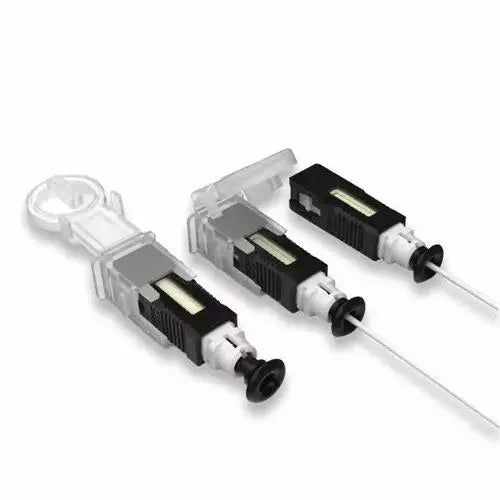

The Corning NPCP-SC-OM2-48 is a field-installable, multimode OM2 SC connector designed for rapid fiber optic termination. Engineered to eliminate the need for traditional epoxy or polishing, this connector allows for assembly in less than one minute, significantly reducing field installation time.
The connector features a rear buffer clamp design that ensures robust mechanical performance, providing superior resistance to twist and transmission with applied load (TWAL). Intended for use with 250µm or 900µm tight or semi-tight buffer fiber, it is suitable for various enterprise and data center network environments.
Key Features
-
Tool-less Termination
Eliminates the need for messy epoxies and time-consuming polishing, allowing for rapid field installation. -
High Durability
Engineered to support up to 500 rematings, ensuring long-term connection integrity. -
Mechanical Stability
Features a rear buffer clamp design for superior TWAL (twist and transmission with applied load) performance. -
Low Insertion Loss
Provides a typical insertion loss of 0.2 dB, ensuring high signal fidelity across the network. -
Broad Compatibility
Designed for use with both 250µm and 900µm tight or semi-tight buffer fibers. -
Compact Packaging
Sold in a 48-pack configuration, consisting of eight 6-piece cases for organized inventory management.
Applications
- Data center fiber management
- Enterprise LAN/WAN installations
- FTTx drop cable terminations
- Rapid emergency fiber repairs
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Part Number | NPCP-SC-OM2-48 |
| Fiber Mode | Multimode (OM2) |
| Connector Type | SC |
| Typical Insertion Loss | 0.2 dB |
| Maximum Insertion Loss | 0.5 dB |
| Reflectance | < -30 dB |
| Rematings | Up to 500 |
| Compatibility | 250µm or 900µm tight/semi-tight buffer fiber |
| Standards Compliance | TIA/EIA-568-D.3, GR-1081, GR-1081-CORE, GR-326-CORE |
Frequently Asked Questions
Does this connector require epoxy?
No, the NPC+ is a no-polish, no-epoxy connector designed for mechanical termination.
What fiber types are compatible?
It is designed for multimode OM2 fiber with either 250µm or 900µm coatings.
What tools are required for installation?
Corning recommends using the TKT-NPCP-FBC007 or TKT-NPCP-CI01 Fiber Termination Kits.
How many connectors are included?
The package contains 48 individual connectors, bundled in eight 6-piece cases.
Are there specific standards met by this product?
Yes, it complies with TIA/EIA-568-D.3 and various GR-CORE requirements for environmental and mechanical performance.
