Overview

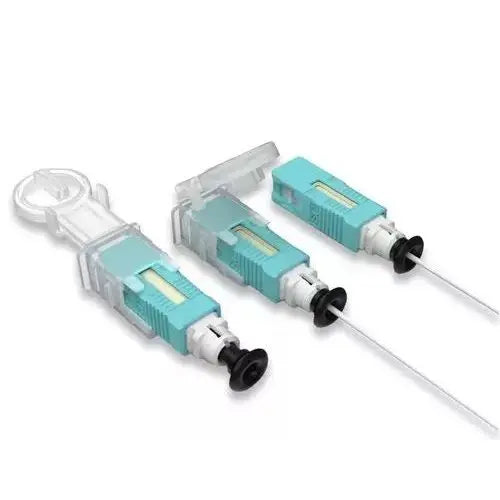

The Corning NPCP-SC-OM34-48 NPC+ is a field-installable multimode SC connector designed for rapid deployment in high-density fiber networks. By eliminating the need for epoxy and polishing, this connector significantly reduces termination time and labor costs, allowing for a typical installation in under one minute.
Engineered for versatility, these connectors are compatible with 250µm and 900µm tight or semi-tight buffer fibers. They are constructed with a rear buffer clamp design that ensures robust mechanical performance, specifically addressing twist and transmission under applied load (TWAL). These connectors are optimized for performance in data centers, enterprise networks, and campus backbones where reliable, rapid field termination is required.
Key Features
-
Field-Installable Design
Eliminates the need for epoxy or polishing, enabling fast field terminations. -
Low Insertion Loss
Features a 0.5 dB maximum (0.2 dB typical) insertion loss for optimized signal integrity. -
High Reflectance Performance
Maintains a reflectance of < -30 dB for reduced signal interference. -
Robust Mechanical Construction
Rear buffer clamp design ensures superior mechanical performance under stress. -
Reusability
Supports up to 500 rematings for long-term flexibility in network reconfiguration. -
Broad Fiber Compatibility
Designed for use with 250µm and 900µm tight or semi-tight buffer multimode fiber.
Applications
- Data center infrastructure
- Enterprise local area networks (LAN)
- Campus fiber backbones
- Field repair and emergency restoration
Package Contents
- 48 x NPC+ MM OM3/4 SC No Polish Connectors (packaged in eight 6-piece cases)
Compatibility
Fiber Termination Kits- TKT-NPCP-FBC007
- TKT-NPCP-CI01
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Part Number | NPCP-SC-OM34-48 |
| Connector Type | SC |
| Fiber Type | Multimode (OM3/OM4) |
| Insertion Loss | 0.5 dB max / 0.2 dB typical |
| Reflectance | < -30 dB |
| Rematings | Up to 500 |
| Standards Compliance | TIA/EIA-568-D.3, GR-1081, GR-1081-CORE, GR-326-CORE |
Frequently Asked Questions
Does this connector require epoxy?
No, the NPC+ is a no-polish, non-epoxy connector designed for rapid field installation.
What fibers are compatible with this connector?
It is compatible with 250µm and 900µm tight or semi-tight buffer multimode OM3/OM4 fiber.
Are there specific tools required for installation?
Yes, the use of TKT-NPCP-FBC007 or TKT-NPCP-CI01 Fiber Termination Kits is recommended for installation.
How many connectors are included in the package?
The package contains 48 connectors, organized into eight 6-piece cases.
What is the typical installation time?
The connector is designed to be installed in less than one minute.
