Overview

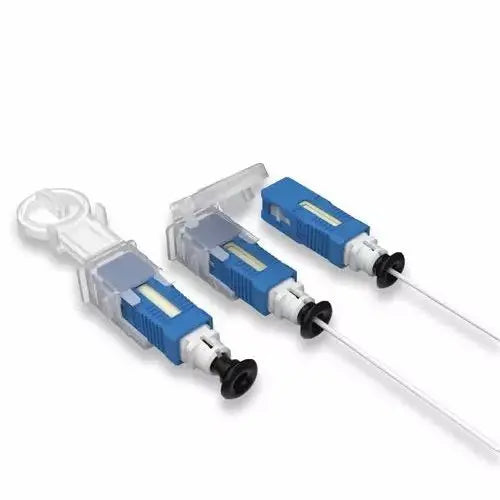

The Corning NPCP-SCU-SM-48 NPC+ is a field-installable, single-mode OS2 SC/UPC connector designed for high-efficiency fiber optic network deployments. This connector eliminates the need for field epoxy or polishing, significantly reducing termination time to under one minute.
Engineered for versatility, it is compatible with 250µm and 900µm fiber types (tight or semi-tight buffer). The integrated rear buffer clamp design ensures reliable mechanical performance, maintaining stability under load and vibration in demanding telecommunications and data center environments.
Key Features
-
Tool-Less Installation
No epoxy or polishing required, which saves significant field termination time. -
High Optical Performance
Features a low insertion loss of 0.3 dB (typical) and 0.6 dB (max). -
Low Reflectance
Reflectance is maintained at < -35 dB to ensure signal integrity. -
Robust Mechanical Design
Rear buffer clamp ensures superior twist and transmission with applied load (TWAL) performance. -
High Reusability
The connector assembly allows for up to 500 rematings. -
Wide Compatibility
Supports both 250µm and 900µm tight or semi-tight buffer fibers.
Applications
- Fiber to the Home (FTTH) networks
- Data center cabling
- Telecommunications network maintenance and repair
- Field fiber termination
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | NPCP-SCU-SM-48 |
| Connector Type | SC/UPC |
| Fiber Mode | Single Mode (OS2) |
| Insertion Loss | 0.3 dB (typical), 0.6 dB (max) |
| Reflectance | < -35 dB |
| Fiber Compatibility | 250µm / 900µm (tight/semi-tight buffer) |
| Rematings | Up to 500 |
| Standards Compliance | TIA/EIA-568-D.3, GR-1081, GR-1081-CORE, GR-326-CORE |
| Package Quantity | 48 connectors (eight 6-piece cases) |
Frequently Asked Questions
Is an installation kit required for this connector?
Yes, the TKT-NPCP-FBC007 or TKT-NPCP-CI01 Fiber Termination Kits are required for installation.
Can these connectors be reused?
The assembly supports up to 500 rematings.
Are these connectors pre-polished?
Yes, as 'No Polish Connectors', they do not require additional field polishing or epoxy.
What fiber sizes are compatible?
They are designed for 250µm and 900µm tight or semi-tight buffer fibers.
How long does installation take?
Under typical conditions, the connector can be installed in less than one minute.
